Zone Overspeeding

The Zone Overspeeding Alert is triggered when a vehicle exceeds the configured speed limit within a defined geofenced zone. It helps fleet managers enforce speed compliance in restricted areas, enhancing safety, reducing accident risks, and ensuring regulatory compliance.

Parameters Considered (Prerequisites)

Geofence: The geofence must be created using either the Area or Road Fence type.

Please Note: Geofence can be configured through Settings > Master > Geofence.

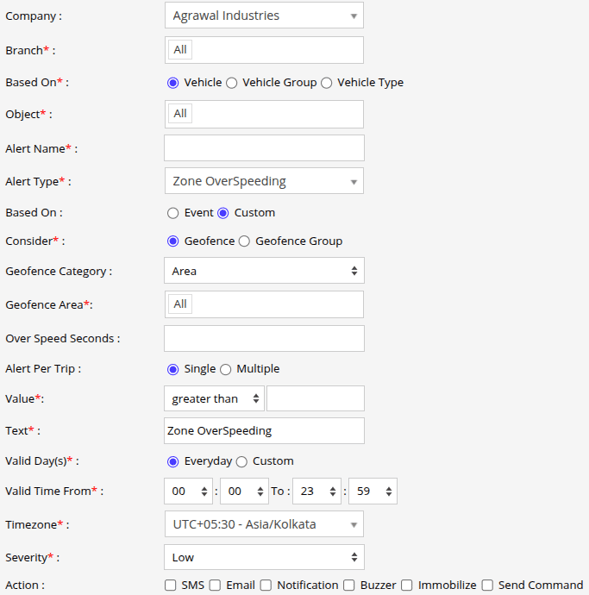

How to Configure

Select the correct Company and Branch for whom the alert is to be configured.
Based On: Choose on what you want to base the alert configuration (Object, Object Group, Object Type).
1. Object: Select individual vehicles for whom you want the alert to generate.
2. Object Group: Select a group of vehicles for whom you want the alert to generate.
3. Object Type: Select vehicle or object type for whom you want the alert to generate.
Select the Object based on the previous step selection.
Set an Alert Name for identification of the alert.
Select the Alert Type as Zone Overspeeding.
From Based On, Select the mode for triggering the alert.
Select Event, if you want the alert to be triggered based on specific events.
1. In Geofence Category, Select Area or Road Fence.
  1. Select Area, If you want the alert to be triggered for geofence with geofence type as Area.
    1. In Value, specify the maximum speed at which vehicle is allowed to move in the area type Geofence, if the vehicle moves above the max limit the alert will be triggered.
  2. Select Road Fence, If you want the alert to be triggered for the geofence with geofence type as Road Fence.
Select Custom, If you want the alert to be triggered based on the custom configuration.
1. In Consider, Select Geofence or geofence group based on which the selection for geofence will appear.
  1. In Geofence Category, Select Area or Road Fence.
    1. Select Area, If you want the alert to be triggered for geofence with geofence type as Area.
      1. In Geofence Area/Geofence Group, Select Geofence/Geofence group from the drop-down list for which you want the alert to be triggered.
      2. In Overspeed Seconds, Specify the Seconds of over speeding after which the alert will be triggered.
      3. In Value, specify the maximum speed at which vehicle is allowed to move in the area type Geofence, if the vehicle moves above the max limit the alert will be triggered.
    2. Select Road Fence, If you want the alert to be triggered for the geofence with geofence type as Road Fence.
      1. From Road Fence, Select the road fence from the drop-down list for whic you want to trigger the alert.
      2. In Overspeed seconds, Specify the Seconds of over speeding after which the alert will be triggered.
In Alert per Trip, select if you want to trigger the alert one time or multiple times.
(a trip is considered from ignition ON to ignition OFF)
1. Select Single, for one alert per trip.
2. Select Multiple. if you want to trigger multiple alert per trip
In the Text field, enter the message that will be displayed when the alert is triggered.
Select the Valid Days, Everyday or Custom.
1. Everyday: This alert will be triggered, everyday in case of a violation in accordance to these parameters set.
2. Custom: Mark the checkboxes of the days, when you want this alert to be triggered for. (eg., Sun, Mon and Sat)
Enter the Valid Time From and To. The alert will be generated inside the time range that you have selected.
Select the Timezone.
Select the Severity of the alert (Low, Medium, or High).
Mark the checkboxes of the medium via which you want the Action or Notification to be sent. (eg., SMS, Email or Notification)
1. SMS: To receive an alert by SMS, enable the checkbox, enter the phone numbers.
2. Email: To receive an alert by Email, enable the checkbox, enter the recipients of the email.
3. Notification: To receive an alert on the system Push Notification, enable checkbox.
  1. From Users, select the users that will receive the notification.
  2. From Notification Sound. Select the sound from the drop-down that will be played for this notification.
4. Buzzer: To play the buzzer when the alert is triggered, enable the checkbox & select weather the buzzer should Turn On/Off or Both.
5. Immobilize: To trigger the immobilizer when the alert is generated, enable the checkbox & select weather the immobilizer should be turned on or off.
Click Save to save the alert configuration.

Please Note: To Receive the alert on SMS & Email, the api should be configured either on Admin, Reseller or Company.

Example

When a vehicle is moving within a geofenced zone marked as a sensitive area and exceeds the configured speed limit (e.g., 50 km/h) for longer than the defined Over Speed Seconds, the alert is triggered. Based on the configuration, the fleet manager or driver is notified via SMS, Email, or In-App Notification. If enabled, additional actions such as activating a buzzer, immobilizing the vehicle, or sending a command can be executed to enforce speed compliance and ensure safety within the monitored zone.
