RPM High Alert

Definition / Description

The RPM High alert is triggered when the engine’s revolutions per minute (RPM) exceed the configured threshold for a specified duration. This alert helps fleet managers or operators identify instances of aggressive driving, excessive engine load, or potential mechanical issues, thereby promoting efficient driving behavior and preventive maintenance.

Parameters Considered (Prerequisites)

  • RPM Sensor: The connection type must be established with the RPM from the sensors connected list.
  • High RPM :The value of High RPM must be defined, from the Sensor Calibration while adding an object.

Note: It can be calibrated through Settings > General > Object > Sensors > Sensor Calibration.

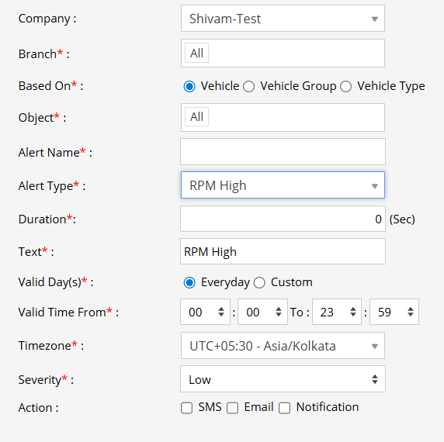

How to Configure

  1. Select the appropriate Company and Branch.
  2. From the Alert Type dropdown, choose RPM High.
  3. Enter an Alert Name as per your preference.
  4. Based On: Object, Object Group or Object Type
  5. Configure the Duration (in seconds) for which the RPM must exceed the threshold before triggering the alert.
  6. Enter a description in the Text field (e.g., “High RPM detected beyond threshold”).
  7. Configure Valid Days — choose Everyday or Custom, and specify the days if custom.
  8. Set the Valid Time From / To to define when the alert is active.
  9. Select the appropriate TimeZone.
  10. Choose the Severity Level (Low / Medium / High).
  11. Select the notification method: SMS, Email, or In-App Notification.
  12. Click Save.

Use Case

An RPM High alert is triggered when a vehicle’s engine RPM exceeds the configured threshold for the defined duration. Notifications are sent via SMS, Email, or In-App Notification, enabling fleet managers to monitor aggressive driving behavior, prevent engine strain, and promote safer and more fuel-efficient driving practices.

When Based On: Object, Object Group or Object Type

  • When you select Object only a dropdown with all the objects will appear. You can select specific vehicles if you want to create the alert specifically for them.
  • When you select Object Group, a dropdown with a list of all Object groups will appear. When you select a specific Object Group , a list of Objects present in that object group will appear below it. If you want the alert to be triggered for specific objects of that specific Object group. (e.g., Object Group and Object)
  • When you select Object Type, a dropdown with a list of all Object groups will appear. When you select a specific Object Type , a list of Objects present in that object type will appear below it. If you want the alert to be triggered for specific objects of that specific Object type. (e.g., Object type and Object)
