Elock Open Back Cap

The E-Lock Open Back Cap alert is triggered when the electronic lock’s back cap is opened. This may indicate potential tampering or unauthorized access and requires immediate attention to ensure the safety and security of the vehicle and its cargo.

Parameters Considered (Prerequisites)

• Elock: The Elock device needs to be configured in the system.

• Job: for the On job option in based on feild, the Job should be assigned to the vehicle

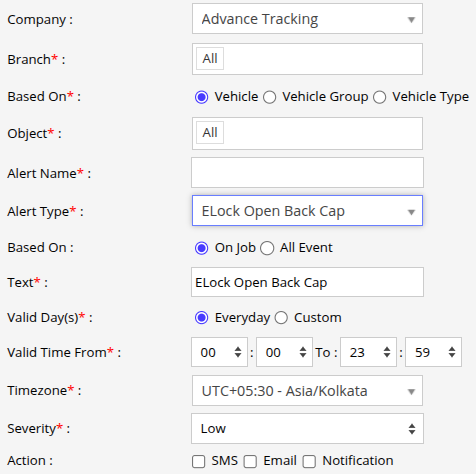

How to Configure

1. Select the correct Company and Branch for whom the alert is to be configured.

2. Based On: Choose on what you want to base the alert configuration (Object, Object Group, Object Type).

   1. Object: Select individual vehicles for whom you want the alert to generate.

   2. Object Group: Select a group of vehicles for whom you want the alert to generate.

   3. Object Type: Select vehicle or object type for whom you want the alert to generate.

3. Select the Object based on the previous step selection.
4. Set an Alert Name for identification of the alert.
5. Select the Alert Type as Elock Open Back Cap.
6. From Based On, Select from On Job or All Event.
   1. Select On Job, If you want the alert to be triggered while the vehicle on Job.
   2. Select All Event, If you want the alert to be triggered every time the event data is received.

7. In the Text field, enter the message that will be displayed when the alert is triggered.

8. Select the Valid Days, Everyday or Custom.
   1. Everyday: This alert will be triggered, everyday in case of a violation in accordance to these parameters set.
   2. Custom: Mark the checkboxes of the days, when you want this alert to be triggered for. (eg., Sun, Mon and Sat)

9. Enter the Valid Time From and To. The alert will be generated inside the time range that you have selected.
10. Select the Timezone.
11. Select the Severity of the alert (Low, Medium, or High).
12. Mark the checkboxes of the medium via which you want the Action or Notification to be sent. (eg., SMS, Email or Notification)

    1. SMS: To receive an alert by SMS, enable the checkbox, enter the phone numbers.
    2. Email: To receive an alert by Email, enable the checkbox, enter the recipients of the email.
    3. Notification: To receive an alert on the system Push Notification, enable checkbox.
       1. From Users,  select the users that will receive the notification.
       2. From Notification Sound. Select the sound from the drop-down that will be played for this notification.
13. Click Save 💾 icon. to save the alert configuration.
