BSD2 Level 1 Alert

Definition / Description

The BSD2 Level 1 alert is triggered when the vehicle’s Blind Spot Detection 2 (BSD2) system identifies an object or vehicle in the blind spot at Level 1 sensitivity. This level provides early warning to drivers and fleet managers to prevent potential collisions during lane changes or merging.

Parameters Considered (Prerequisites)

• Video Streaming Device or ADAS: To trigger this event, a video streaming device or an ADAS must be configured.
• BSD Sensitivity: BSD Sensitivity configured on selected ADAS channels to detect and record the event clip in the Camera tab while adding an object.

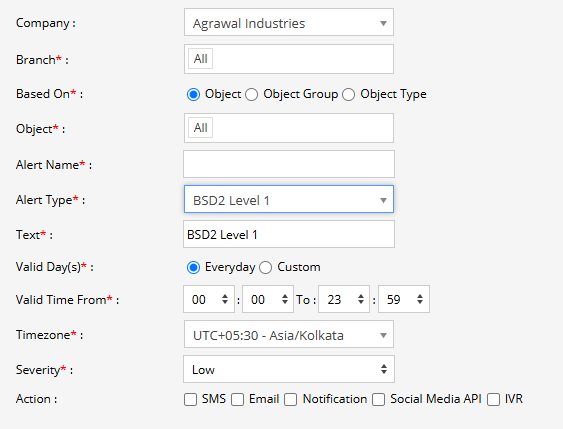

How to Configure

1. Select the relevant Company and Branch.
2. From the Alert Type dropdown, choose BSD2 Level 1.
3. Enter an Alert Name as per your preference.
4. Based On: Object, Object Group, or Object Type

5. Enter a descriptive Text message (e.g., “Object detected in blind spot – BSD2 Level 1”).
6. Configure Valid Days — choose Everyday or Custom, and specify the days if custom.
7. Set Valid Time From / To to define when the alert should be active.
8. Select the appropriate TimeZone.
9. Set the Severity Level (Low, Medium, or High).
10. Select preferred notification methods — SMS, Email, or In-App Notification.
11. Click Save.

Use Case

A BSD2 Level 1 alert is triggered when an object or vehicle enters the blind spot at Level 1 sensitivity. Notifications are sent via SMS, Email, or In-App Notification, enabling the driver and fleet managers to take early preventive action to reduce the risk of collisions.

When Based On: Object, Object Group, or Object Type

• Object: Select individual BSD2-equipped vehicles for which the alert should apply.
• Object Group: Select a group of BSD2-equipped vehicles; all vehicles in the group appear for further selection.
• Object Type: Select vehicle types equipped with BSD2; all vehicles under that type will be available for selection.
