Base Location Unauthorized Movement

The Base Location Unauthorized Movement alert is triggered when an object moves outside its designated base location and travels beyond the defined distance threshold.
This alert helps fleet managers detect unauthorized trips or movements that occur without approval, ensuring better control over object utilization and security.

Parameters Considered (Prerequisites)

Base Location Defined: The base location (source location) must be defined in the system for accurate detection of unauthorized movement.

Please Note: The Base Location must be configured in Settings > Master > Base Location Configuration

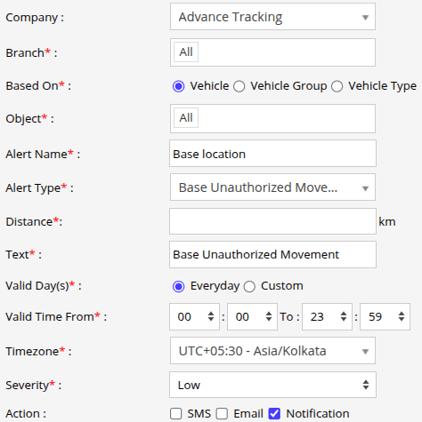

How to Configure

Select the correct Company and Branch for whom the alert is to be configured.
Based On: Choose on what you want to base the alert configuration (Object, Object Group, Object Type).
1. Object: Select individual vehicles for whom you want the alert to generate.
2. Object Group: Select a group of vehicles for whom you want the alert to generate.
3. Object Type: Select vehicle or object type for whom you want the alert to generate.
Select the Object based on the previous step selection.
Set an Alert Name for identification of the alert.
Select the Alert Type as Base Location Unauthorized Movement.
Enter the Distance Threshold (in km) which when crossed the alert is triggered.
In the Text field, enter the message that will be displayed when the alert is triggered.
Select the Valid Days, Everyday or Custom.
1. Everyday: This alert will be triggered, everyday in case of a violation in accordance to these parameters set.

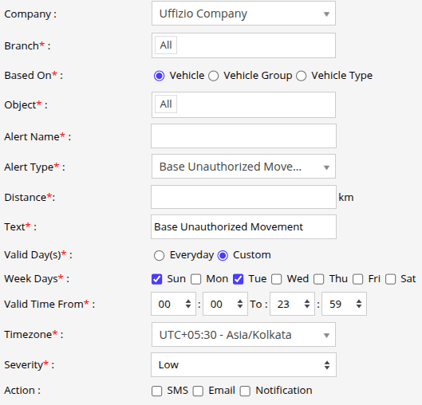

2. Custom: Mark the checkboxes of the days, when you want this alert to be triggered for. (eg., Sun, Mon and Sat)
Enter the Valid Time From and To. The alert will be generated inside the time range that you have selected.
Select the Timezone.
Select the Severity of the alert (Low, Medium, or High).
Mark the checkboxes of the medium via which you want the Action or Notification to be sent. (eg., SMS, Email or Notification)
1. SMS: To receive an alert by SMS, enable the checkbox, enter the phone numbers.
2. Email: To receive an alert by Email, enable the checkbox, enter the recipients of the email.
3. Notification: To receive an alert on the system Push Notification, enable checkbox, and select the notification tone. you’ll receive notifications according to the Severity Set i.e Low, Medium or High.
Click Save to save the alert configuration.

Please Note: To Receive the alert on SMS & Email, the api should be configured either on Admin, Reseller or Company.

Example

If an object is parked at its base depot in Ahmedabad and moves 5 km away from the base location without any scheduled task, the Base Location Unauthorized Movement alert will be triggered.
A notification is immediately sent to the fleet manager via SMS, Email, or App Notification, allowing them to take prompt action to verify or immobilize the object if needed.
