The Pet tab provides a comprehensive overview of all vehicle associated with the logged-in account, organized by their current status—such as Running, Stopped, Idle, and Inactive. This tab also presents essential details, including the object number, name, speed, driver information, the timestamp of the last data update, the status of connected ports, etc., all conveniently displayed in one location.
Please Note: The live tracking module on Web Portal is only available for Admin, Reseller & related subuser's.
To view the object tab, go to Listing Panel > Pet tab.
The Pet tab includes a variety of essential features and details:

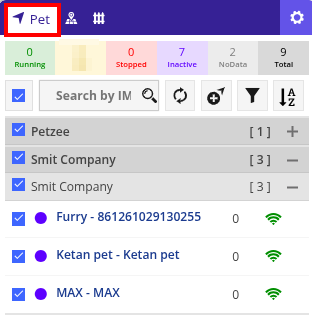

Pet Status
Pet status is displayed in a color-coded form on the Pet status bar. Below given is the image of the Pet status bar, which shows the number of vehicles in each category:
To refine the results displayed in the Pet list, users can simply click on the status indicator to filter and view Pet that fall within that specific status category.

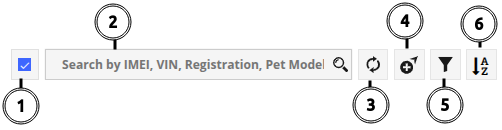

Search/Add Object
From here, a user can perform actions on the objects.
Below given are the actions that can be performed:
- Select/Unselect all objects: By clicking on the checkbox, a user can select or unselect all the vehicles at once.
-
Search Object: Using the search box, the user can easily search for specific objects by IMEI, Registration, Object Model, Sim Number, etc.
-
Add Object: By clicking on the reload button, the user can refreash the page to load latest data.
-
Filter: The user can filter objects on the basis of Company-Branch, Object Group, Reminder, Object Type or Mode of the object using the filter option.
- Sort:

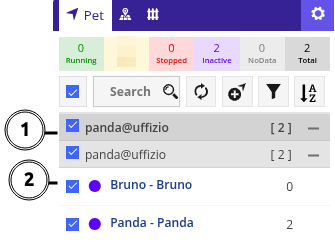

Object Information
Users can conveniently access comprehensive details about each object in a single location.

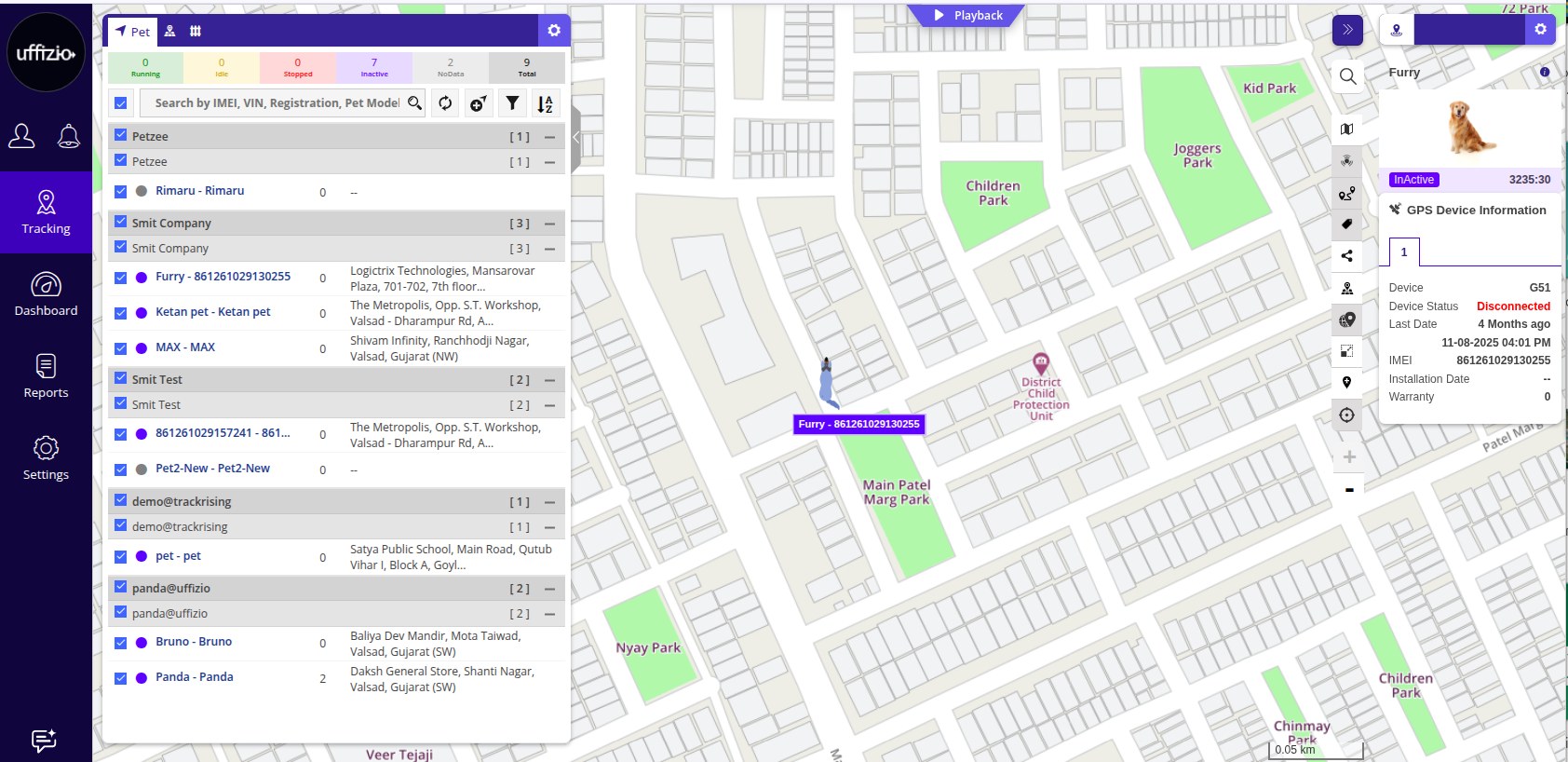

Upon selecting a specific vehicle, the relevant screen will be displayed as shown in the following image:
The following details can be accessed and viewed in the object information list.
These parameters will be shown according to the specific selections made by the user from the Object List Setting.
-
Consumer Name: Displays the name of the company associated with the object.
-
Object List: The list of all the objects along with their details are displayed.

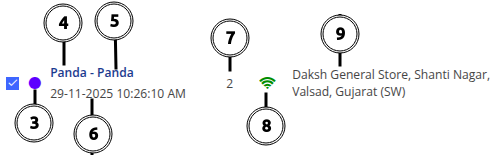

The object list displays the below-given details:
-
Object Status: Below given is the color code that denotes the status of that object:
Running
Pet is in a moving state.
Stopped
Pet is not in a moving state.
Inactive
Device that have not sent any data to the server for specified period of time.
No Data
Device that have not yet sent any live data to the server. - Per Number: Displays the Pet number or the unique identification number assigned to the Pet.
-
Pet Name: Displays the specific name assigned to the Pet.
-
Last Data Updated: The timestamp indicating the latest data received from the device and updated on the server.
-
Speed: This indicates the current speed of the Pet.
- GPS : Displays weather device GPS is On or Off, Green = On & Red = Off.
- Address: Shows the Pet current address on the Map.
The ports enabled through the Pet tooltip settings, according to user preferences, will be displayed.
Pet List Setting
Users can customize the pet listing by selecting which specific details they wish to display with this setting. This personalization enables them to adjust the parameters according to their individual needs and preferences.
-
Go to Listing Panel > Pet tab >
to customize the parameters that users want to view in an Pet list.
-
Once you click on the Settings button, a window opens on the right side of the screen as below:
-
Select the preferred parameters, and then click on Save.
Please Note: The "Object List Settings" icon will only appear if the parent user has given permission for it. This ensures that only authorized users can access and modify settings, enhancing security. Check how you can manage rights.
Tooltip

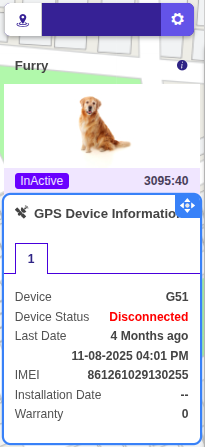

When a user clicks on an Pet from the list, a tooltip will appear on the right side of the screen, displaying widget with details related to the Pet.
The tooltip is as shown in the below image:
Playback

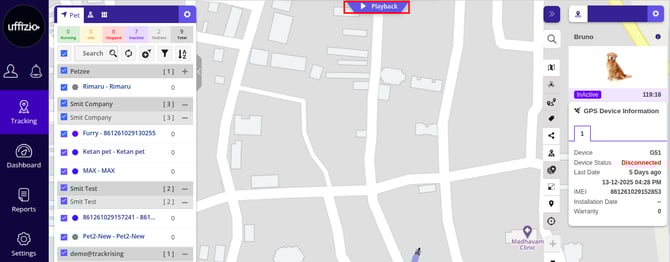

At the top center of the screen, there's a playback feature that lets users watch the selected Pet's movements or activities during a specific time period.
Playback is as shown in the below image:
To know more about Playback, click here.
Upon selecting a specific pet, the Traveled path of that vehicle for the current day will be displayed on a map, giving you a clear view of its journey.
