When the user clicks on an object from the object list, a tooltip will appear on the right side of the live tracking screen. This tooltip will display the real-time data of the current day on the various widgets, each showing information related to the different object's feature.
The user can customize these widgets to fit their specific requirements.
To view the tooltip, go to Listing Panel > Object tab > Click on an object.
-

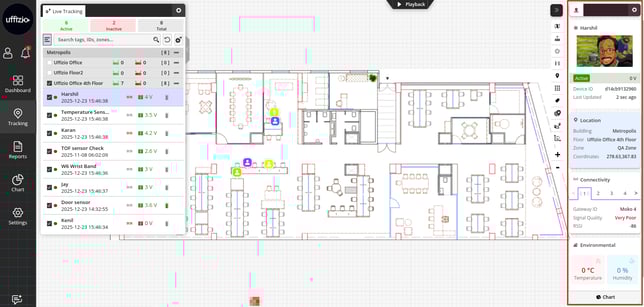

The tooltip will be displayed on the right side of the screen and will correspond to the object that has been selected from the object list, as illustrated in the image below.
-
The tooltip allows users to customize their view by selecting preferred widgets, providing information about various features related to the object according to individual needs.
-
Users have the flexibility to rearrange the widgets in a sequence that best suits their preferences.
To enable or select the preferred widgets, go to Tooltip > Click on
as highlighted in the image below:

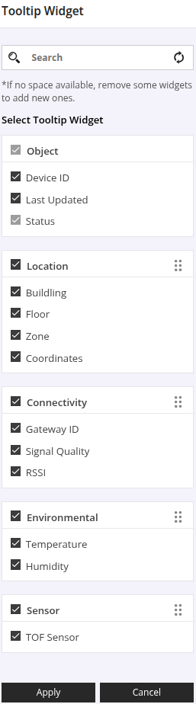

The tooltip widgets will be displayed according to the selections made in the image provided below:
Multiple widgets from different categories can be selected based on the user's requirements and preferences.
Please Note: The "Object Tooltip Settings" icon will only appear if the parent user has given permission for it. This ensures that only authorized users can access and modify settings, enhancing security. Check how you can manage rights.
Below given are the categories and the widgets under them:
- Object
- Device ID
This shows the Device ID of the Object, that the user had selected. - Last Updated
This shows the last time elapsed from the last data that was received from the device for the object, that the user had selected. - Status
This will display the status of the object if it is active or inactive
- Device ID
Rest all the widgets are feature-oriented.
- Location
- Connectivity
- Environmental
- Sensor
