The Power Sensor Configuration is used to map and enable the power sensor connected to the tracking device. Once configured, the system can receive and process power-related data transmitted by the device.
Before You Get Started
- Log in to your account.
- Go to Settings > General > Object.
- Double-click on the vehicle/object record for which you want to configure the Ignition sensor .
To Get Started

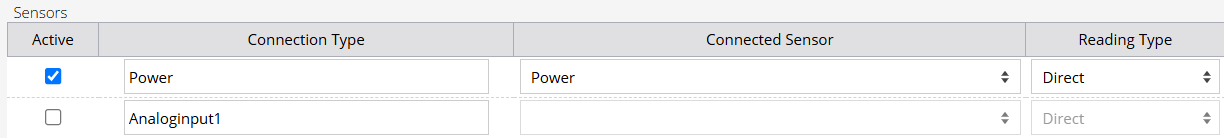

- Navigate to the Sensors tab.
- Activate the digital port connection type by clicking on the checkbox given in the Active column.
- User can select the dedicated Power port in the list or user can connect it on digital input port as well.
-
Reading Type: This setting determines how the received data is displayed in the system.
- Direct: The system displays the data exactly as it is received from the sensor.
- Inverse: The system displays the opposite of the received data (e.g., ON becomes OFF and OFF becomes ON).
Please Note: Select the appropriate option based on how you want the sensor data to be interpreted and shown in the system.
- Save the configuration by clicking on the Save 💾 icon.
Please Note: Users can configure alerts for Power actions to stay informed of any activity.
