Path Management

The Path Management module allows users to create, store, and manage predefined travel routes within Trakzee. These paths can be created manually by drawing them on the map or by copying an existing path from previously saved routes, enabling organizations to standardize frequently used routes across their fleet.

Each path consists of multiple waypoints connected to form a complete route. Once created, paths can be viewed, edited, and reused for operational planning, monitoring, and future integrations with other modules.

To Get Started

• Log in to your account
• Go to setting>master> Path

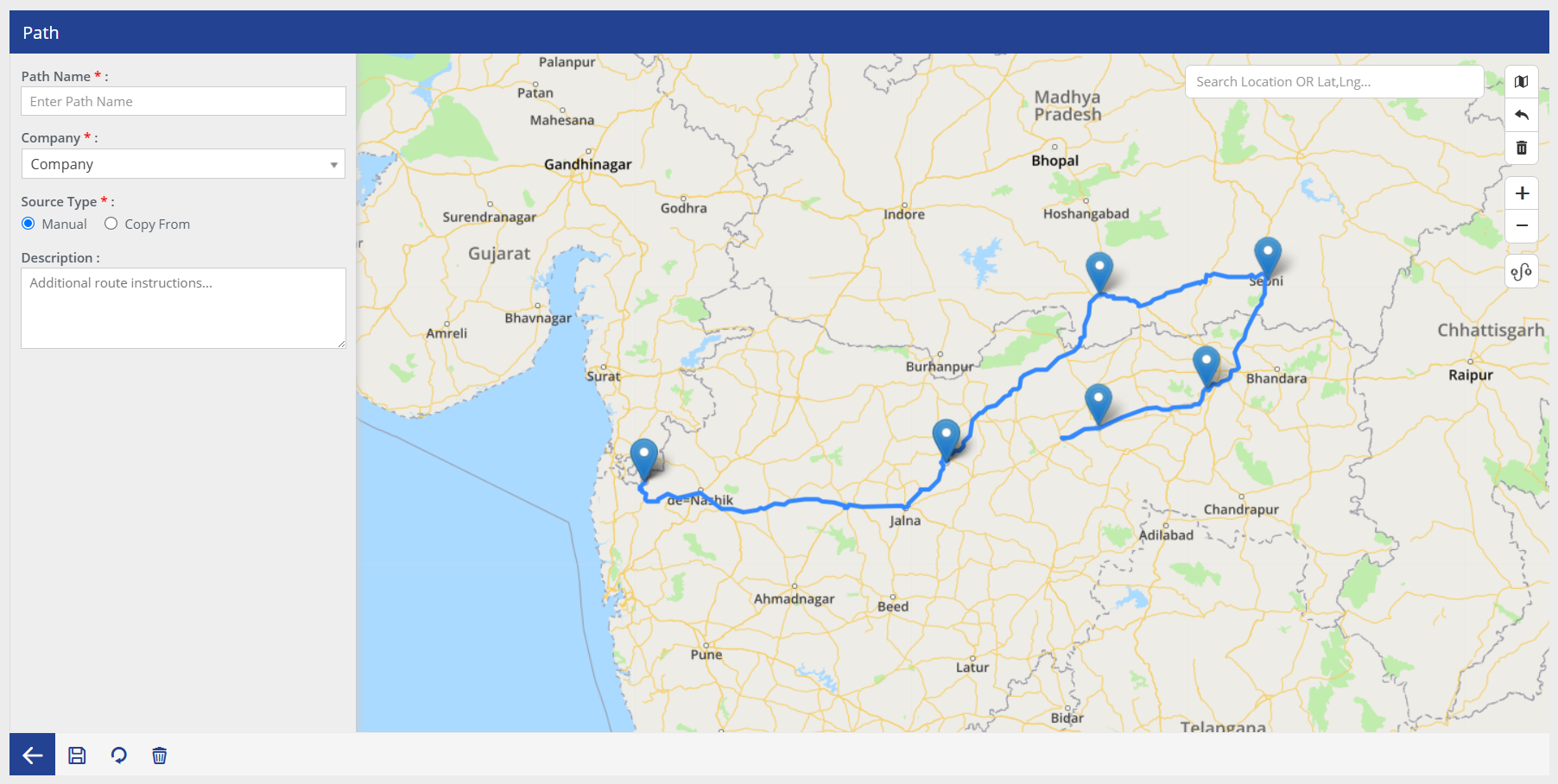

To Create a Path

• Enter the Path Name.
• Select the Company
• Select the Source Type
  • Manual – Create a new path by placing waypoints on the map.
  • Copy From – Copy an existing path as the starting point for a new one.
• Enter a Description to provide additional route information (optional)

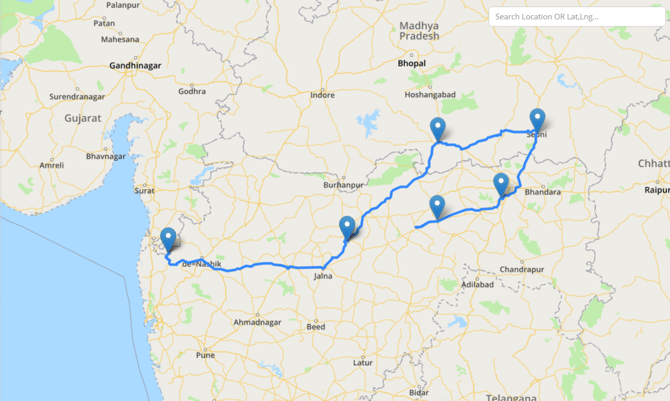

• Use the interactive map to create or modify the route

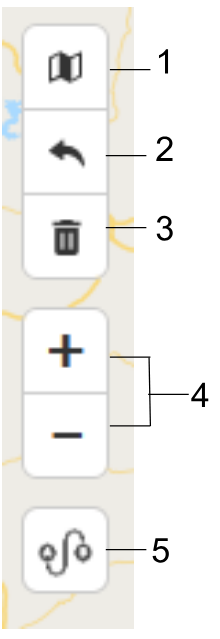

  • Click this icon to switch between different map views (such as Road, Satellite, or Hybrid) based on your preference.


    • You can serach the location or latitude longitude.
  • Click this icon to undo the most recent action, such as removing the last waypoint or reversing the latest change made while creating the path.
  • Click this icon to remove the entire plotted route from the map and start creating the path again.
  • Use the + button to zoom in for precise waypoint placement and the − button to zoom out for a broader view of the route.
  • Enable or disable Snap to Road. When enabled, the route automatically aligns with the nearest road network, creating a more realistic driving path instead of straight lines between waypoints


•  Click Save to store the path
