Definition / Description
The Sublock Rope Inserted Alert is triggered when the sublock detects that its rope or cable has been properly inserted into the locking mechanism. This event confirms that the sublock is physically secured and ready for operation. Monitoring rope insertion ensures that cargo containers, compartments, or secured units are correctly locked before transit, thereby reducing risks related to incomplete locking, accidental opening, or potential tampering.
Parameters Considered (Prerequisites)
Sublock Configuration:
A sublock must be configured under Settings > General > Elock Sublock.

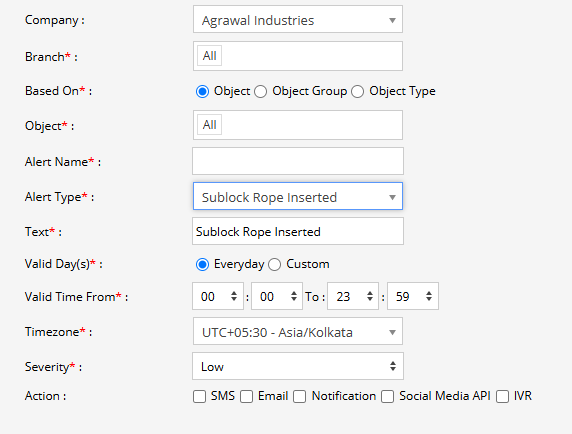

How to Configure
- Select the relevant Company and Branch.
- Under Based On, choose the basis for triggering the alert: Object, Object Group or Object Type
- Select the Object where the alert should be applied.
- Enter an Alert Name (e.g., “Sublock Rope Inserted”).
- From the Alert Type dropdown, select Sublock Rope Inserted.
- In the Text field, enter a descriptive message (e.g., “Sublock rope inserted — lock engagement confirmed”).
- Configure Valid Day(s):
- Everyday – for all days.
-
- Custom – to select specific days.
- Set Valid Time From / To (e.g., 00:00 to 23:59).
- Select the appropriate Timezone.
- Choose the Severity Level — Low, Medium, or High.
- Configure the Action to be taken when the alert triggers: SMS, Email, or Notification.
- Click Save to complete the configuration.
Example / Use Case
A Sublock Rope Inserted Alert is triggered when the sublock system detects that its security rope or cable has been properly reinserted after loading or inspection. For example, after loading goods into a container, the rope is inserted into the sublock to confirm that the locking mechanism is physically secured. This alert helps in ensuring that the cargo is locked before departure. This provides traceable confirmation of secured locking operations and helps maintain cargo integrity during transportation.
Action
The selected notification or action must be configured (e.g., SMS, Email, or Notification).
- SMS: Must be configured while creating an Admin, Reseller, or Company account. After setup, contact numbers can be added to receive alert notifications.
- Email: Must be configured during account setup. Add email recipients to receive notifications through email.
- In-App Notification: Choose the notification sound and specify users who should receive the alert notification within the platform.
When Based On: Object, Object Group, or Object Type
- Object: Select individual vehicles or assets equipped with Elock and Sublock systems for which the alert should be applied.
- Object Group: Select a group of assets or vehicles with Sublock devices; all within the group will be monitored for rope insertion events.
- Object Type: Select vehicle or asset types that support Sublock rope detection; all under that type will be available for configuration.
