Stay in Zone

The Stay in Zone alert notifies fleet managers when a vehicle exits a predefined geofence area where it is required to remain. This alert helps ensure that assets such as construction machinery, school buses, or depot-based vehicles do not operate outside their designated zones, enhancing operational control, safety, and compliance.

Parameters Considered (Prerequisites)

Geofence: Stay in zone is an area where an object is restricted from exiting. For an Stay in Zone alert to be triggered, a Stay in zone geofence must be configured.

Please Note: Geofence can be configured through Settings > Master > Geofence.

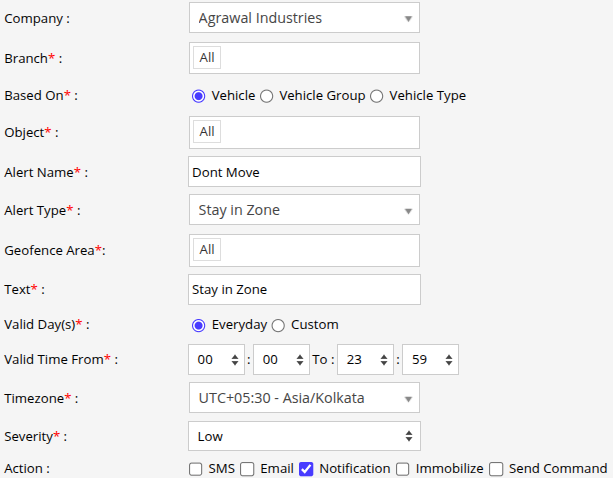

How to Configure

Select the correct Company and Branch for whom the alert is to be configured.
Based On: Choose on what you want to base the alert configuration (Object, Object Group, Object Type).
1. Object: Select individual vehicles for whom you want the alert to generate.
2. Object Group: Select a group of vehicles for whom you want the alert to generate.
3. Object Type: Select vehicle or object type for whom you want the alert to generate.
Select the Object based on the previous step selection.
Set an Alert Name for identification of the alert.
Select the Alert Type as Stay in Zone.
From Geofence Area, Select the geofence for which you want the alert to be configured.
In the Text field, enter the message that will be displayed when the alert is triggered.
Select the Valid Days, Everyday or Custom.
1. Everyday: This alert will be triggered, everyday in case of a violation in accordance to these parameters set.
2. Custom: Mark the checkboxes of the days, when you want this alert to be triggered for. (eg., Sun, Mon and Sat)
Enter the Valid Time From and To. The alert will be generated inside the time range that you have selected.
Select the Timezone.
Select the Severity of the alert (Low, Medium, or High).
Mark the checkboxes of the medium via which you want the Action or Notification to be sent. (eg., SMS, Email or Notification)
1. SMS: To receive an alert by SMS, enable the checkbox, enter the phone numbers.
2. Email: To receive an alert by Email, enable the checkbox, enter the recipients of the email.
3. Notification: To receive an alert on the system Push Notification, enable checkbox.
  1. From Users, select the users that will receive the notification.
  2. From Notification Sound. Select the sound from the drop-down that will be played for this notification.
4. Immobilize: To trigger the immobilizer when the alert is generated, enable the checkbox & select weather the immobilizer should be turned on or off.
5. Send Command: To send a command when the alert is triggered, enable the checkbox & enter the command that is to be send.
Click Save to save the alert configuration.

Please Note: To Receive the alert on SMS & Email, the api should be configured either on Admin, Reseller or Company.

Example

A Stay in Zone alert is triggered when a vehicle exits an assigned geofence area where it is required to remain. For example, if a construction loader designated to operate within a quarry boundary moves outside the geofence during active monitoring hours, the alert is activated. Based on the configured actions, the system sends an SMS or in-app notification, and if an Immobilize or Send Command action is enabled, the vehicle can be automatically stopped to prevent unauthorized movement beyond the designated area.
