Moving Alert

The Moving alert is used to notify users when a vehicle starts moving or meets a configured movement condition. This alert helps users monitor vehicle movement and identify when a vehicle changes from a stationary state to a moving state or reaches a specified speed condition.

Parameters Considered (Prerequisites)

• Movement Data: The selected object must provide valid movement or speed data for the alert to be triggered.
• Event/Custom Condition: The alert can be configured based on a system Event or a user-defined Custom speed condition.

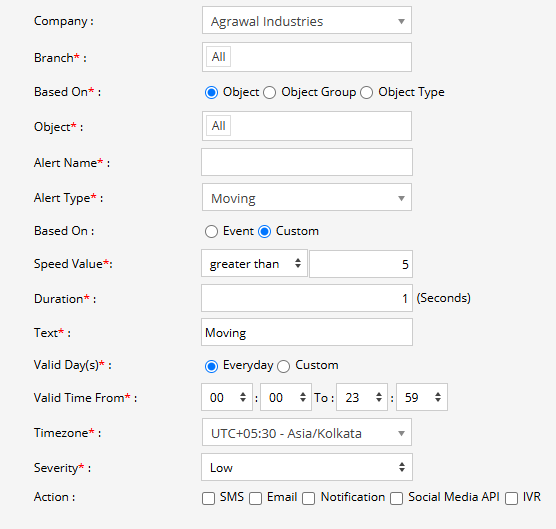

How to Configure

1. Select the correct Company and Branch for whom the alert is to be configured.
2. Based On: Choose what you want to base the alert configuration on (Object, Object Group, Object Type).
   1. Object: Select individual vehicles/objects for whom you want the alert to generate.
   2. Object Group: Select a group of vehicles/objects for whom you want the alert to generate.
   3. Object Type: Select a vehicle or object type for whom you want the alert to generate.
3. Select the Object based on the previous step selection.
4. Set an Alert Name for identification of the alert.
5. Select the Alert Type as Moving.
6. Under Based On, select how the moving condition should be evaluated:
   1. Event: Select Event to generate the alert based on the movement event received by the system.
      • From Value, select On, Off, or Both.
      • On: The alert will be triggered when the moving status changes to ON.
      • Off: The alert will be triggered when the moving status changes to OFF.
      • Both: The alert will be triggered for both ON and OFF movement status changes.
   2. Custom: Select Custom to define the movement condition using speed.
      • From Speed Value, select the required condition, such as Greater Than.
      • Enter the required speed value.
      • In Duration, enter the time in seconds for which the speed condition must remain valid before the alert is triggered.
7. In the Text field, enter the message that will be displayed when the Moving alert is triggered.
8. Select the Valid Day(s) as Everyday or Custom.
   1. Everyday: The alert will be triggered every day when the configured movement condition is met.
   2. Custom: Select the specific days on which you want this alert to be triggered.
9. Enter the Valid Time From and To. The alert will be generated only within the selected time range.
10. Select the required Timezone.
11. Select the Severity of the alert (Low, Medium, or High).
12. Under Action, select the medium through which the alert or notification should be sent (SMS, Email, Notification, Social Media API, or IVR).
    1. SMS: To receive the alert by SMS, enable the checkbox and enter the required phone numbers.
    2. Email: To receive the alert by email, enable the checkbox and enter the email recipients.
    3. Notification: To receive the alert as a system push notification, enable the checkbox and select the users who should receive it.
    4. Social Media API: To receive the alert through WhatsApp or Telegram, enable the checkbox and configure the required gateway and recipient details.
    5. IVR: To receive the alert through an automated voice call, enable the checkbox and enter the required phone numbers.
13. Click the Save 💾 icon to save the alert configuration.

Example

A fleet manager wants to know whenever a vehicle starts moving. The Moving alert is configured using the Event option with On selected. When the vehicle changes from a stationary state to a moving state, the Moving alert is triggered and the configured users receive a notification.

Alternatively, the alert can be configured using Custom, such as Speed Greater Than 5 km/h for 1 second. In this case, the alert is triggered when the vehicle's speed remains above the configured threshold for the specified duration.
