Humidity

 The Humidity alert is used to notify users when the humidity level detected by the connected sensor falls within or outside the configured humidity range. This alert helps fleet operators monitor environmental conditions inside the vehicle or monitored area and take timely action when humidity reaches an undesirable level.

Parameters Considered (Prerequisites)

• Humidity Sensor: The selected vehicle or object must be equipped with a supported humidity sensor.
• Humidity Data: The system must receive valid humidity readings from the connected sensor.
• Humidity Threshold: A humidity range must be configured to determine when the alert condition is met.
• Ignition Status (Optional): The Ignition checkbox can be enabled if the humidity condition should be evaluated based on the vehicle's ignition status.

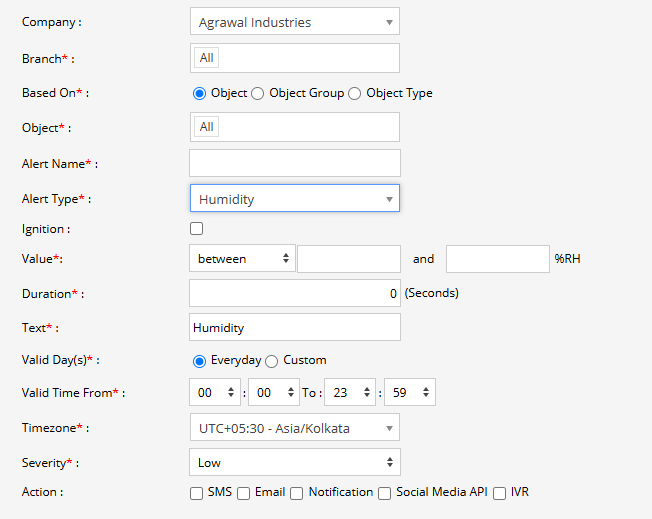

How to Configure

1. Select the correct Company and Branch for whom the alert is to be configured.
2. Based On: Choose what you want to base the alert configuration on (Object, Object Group, Object Type).
   1. Object: Select individual vehicles/objects for whom you want the alert to generate.
   2. Object Group: Select a group of vehicles/objects for whom you want the alert to generate.
   3. Object Type: Select a vehicle or object type for whom you want the alert to generate.
3. Select the Object based on the previous step selection.
4. Set an Alert Name for identification of the alert.
5. Select the Alert Type as Humidity.
6. If required, enable the Ignition checkbox to apply the humidity condition based on the vehicle's ignition status.
7. Under Value, select the required comparison condition and enter the humidity range in %RH.
   • Between: The alert condition is evaluated when the humidity value falls between the two configured limits.
8. Enter the Duration in seconds. The alert will be triggered when the configured humidity condition remains valid for the specified duration.
9. In the Text field, enter the message that will be displayed when the Humidity alert is triggered.
10. Select the Valid Day(s) as Everyday or Custom.
    1. Everyday: The alert will be triggered every day when the configured humidity condition is met.
    2. Custom: Select the specific days on which you want this alert to be triggered.
11. Enter the Valid Time From and To. The alert will be generated only within the selected time range.
12. Select the required Timezone.
13. Select the Severity of the alert (Low, Medium, or High).
14. Under Action, select the medium through which the alert or notification should be sent (SMS, Email, Notification, Social Media API, or IVR).
    1. SMS: To receive the alert by SMS, enable the checkbox and enter the required phone numbers.
    2. Email: To receive the alert by email, enable the checkbox and enter the email recipients.
    3. Notification: To receive the alert as a system push notification, enable the checkbox and select the users who should receive it.
    4. Social Media API: To receive the alert through WhatsApp or Telegram, enable the checkbox and configure the required gateway and recipient details.
    5. IVR: To receive the alert through an automated voice call, enable the checkbox and enter the required phone numbers.
15. Click the Save 💾 icon to save the alert configuration.

Example

If the humidity range is configured between 40%RH and 60%RH, the system monitors the humidity received from the connected sensor. When the configured humidity condition is met for the specified duration, the Humidity alert is triggered and the selected users receive a notification, allowing the fleet operator to take appropriate action.
