Fuel Refill

The Fuel Refill Alert is triggered when a significant increase in fuel level is detected based on the configured fill difference values during fuel calibration. This alert helps fleet managers monitor refueling activities and ensure accurate fuel tracking.

Parameters Considered (Prerequisites)

• Fuel sensor configuration: Fuel sensor needs to be configured.
• Geofence : Authorized area selection requires a geofence to be configured.

How to Configure

1. Select the correct Company and Branch for whom the alert is to be configured.

2. Based On: Choose on what you want to base the alert configuration (Object, Object Group, Object Type).

   1. Object: Select individual vehicles for whom you want the alert to generate.
   2. Object Group: Select a group of vehicles for whom you want the alert to generate.
   3. Object Type: Select vehicle or object type for whom you want the alert to generate.

3. Select the Object based on the previous step selection.

4. Set an Alert Name for identification of the alert.

5. Select the Alert Type as Fuel Refill.

6. Select Authorized Area, if you want the alert to be triggered based on whether the vehicle is inside or outside a geofenced area.
   1. Select Inside if you want to trigger the alert, when fuel is refilled inside the selected geofence.
   2. Select Outside  if you want to trigger the alert, when fuel is refilled outside the selected geofence.
7. Select Inside or Outside condition for the Geofence.

   1. Select Inside if you want to trigger the alert, when fuel is refilled inside the selected geofence.
   2. Select Outside if you want to trigger the alert, when fuel is refilled outside the selected geofence.
8. From Consider select weather you want Geofence or Geofence Group to get the listing.
   1. Select Geofence, if you want to list out all available geofence.

      1. From Geofence Area, Select the Geofence for which you want to configure the Alert.

   2. Select Geofence Group if you want to select geofence from a particular geofence group.
      1. From the Geofence Group, Select the Group for which you want to configure the alert.


9. In the Text field, enter the message that will be displayed when the alert is triggered.

10. Select the Valid Days, Everyday or Custom.
    1. Everyday: This alert will be triggered, everyday in case of a violation in accordance to these parameters set.
    2. Custom: Mark the checkboxes of the days, when you want this alert to be triggered for. (eg., Sun, Mon and Sat)

11. Enter the Valid Time From and To. The alert will be generated inside the time range that you have selected.
12. Select the Timezone.
13. Select the Severity of the alert (Low, Medium, or High).
14. Mark the checkboxes of the medium via which you want the Action or Notification to be sent. (eg., SMS, Email or Notification)

    1. SMS: To receive an alert by SMS, enable the checkbox, enter the phone numbers.
    2. Email: To receive an alert by Email, enable the checkbox, enter the recipients of the email.
    3. Notification: To receive an alert on the system Push Notification, enable checkbox.
       1. From Users,  select the users that will receive the notification.
       2. From Notification Sound. Select the sound from the drop-down that will be played for this notification.
15. Click Save 💾 icon. to save the alert configuration.

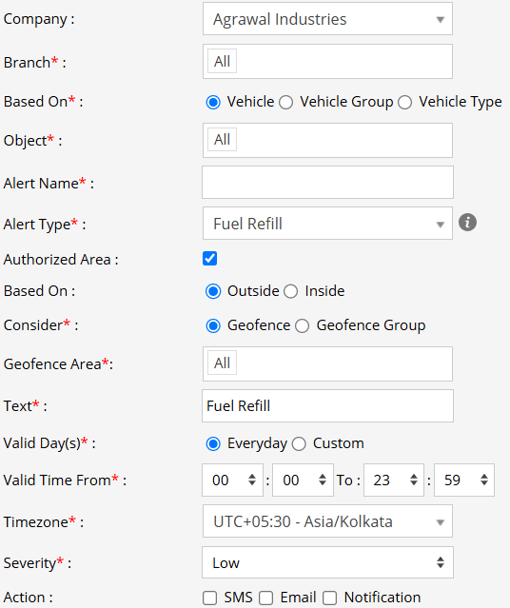

Example
