Eye Sensor Movement Alert

 The Eye Sensor Movement alert is used to notify users when the movement status of an object detected by a connected Eye Sensor changes. This alert helps monitor movement detected by the eye sensor and provides timely notifications when the sensor detects or stops detecting movement.

Parameters Considered (Prerequisites)

• Eye Sensor: An Eye Sensor must be configured and associated with the selected object for this alert to be triggered.
• Eye Sensor Status: The system must receive the movement status from the configured Eye Sensor.

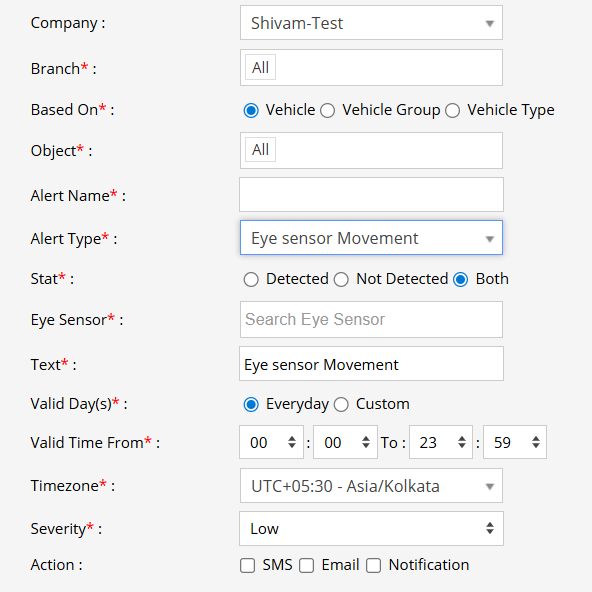

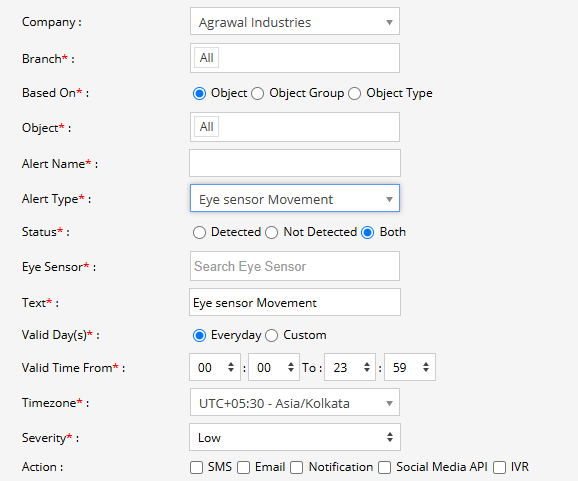

How to Configure

1. Select the correct Company and Branch for whom the alert is to be configured.
2. Based On: Choose what you want to base the alert configuration on (Object, Object Group, Object Type).
   1. Object: Select individual vehicles/objects for whom you want the alert to generate.
   2. Object Group: Select a group of vehicles/objects for whom you want the alert to generate.
   3. Object Type: Select a vehicle or object type for whom you want the alert to generate.
3. Select the Object based on the previous step selection.
4. Set an Alert Name for identification of the alert.
5. Select the Alert Type as Eye Sensor Movement.
6. From Status, select the movement condition for which the alert should be triggered:
   1. Detected: The alert will be triggered when movement is detected by the Eye Sensor.
   2. Not Detected: The alert will be triggered when movement is no longer detected by the Eye Sensor.
   3. Both: The alert will be triggered when movement is detected and when movement is no longer detected.
7. From Eye Sensor, search and select the Eye Sensor that should be considered for the alert.
8. In the Text field, enter the message that will be displayed when the Eye Sensor Movement alert is triggered.
9. Select the Valid Day(s) as Everyday or Custom.
   1. Everyday: The alert will be triggered every day when the configured Eye Sensor movement condition is met.
   2. Custom: Select the specific days on which you want this alert to be triggered.
10. Enter the Valid Time From and To. The alert will be generated only within the selected time range.
11. Select the required Timezone.
12. Select the Severity of the alert (Low, Medium, or High).
13. Under Action, select the medium through which the alert or notification should be sent (SMS, Email, Notification, Social Media API, or IVR).
    1. SMS: To receive the alert by SMS, enable the checkbox and enter the required phone numbers.
    2. Email: To receive the alert by email, enable the checkbox and enter the email recipients.
    3. Notification: To receive the alert as a system push notification, enable the checkbox and select the users who should receive it.
    4. Social Media API: To receive the alert through WhatsApp or Telegram, enable the checkbox and configure the required gateway and recipient details.
    5. IVR: To receive the alert through an automated voice call, enable the checkbox and enter the required phone numbers.
14. Click the Save 💾 icon to save the alert configuration.

Example

An Eye Sensor is installed and configured on a vehicle to detect movement. The Eye Sensor Movement alert is configured with Detected selected. When the Eye Sensor detects movement, the system triggers the alert and sends a notification to the configured users. If Both is selected, an alert is generated when movement is detected as well as when movement is no longer detected.
