Exceeding Road Sign Warning

The Exceeding Road Sign Warning alert is triggered when a vehicle’s speed goes above the speed limit shown on road signs. This alert helps fleet managers monitor overspeeding, improve road safety, and reduce the risk of accidents or traffic violations.

Parameters Considered (Prerequisites)

• Camera: Camera should be configured for ADAS events.

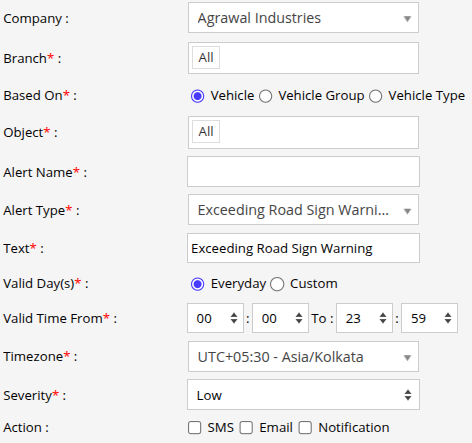

How to Configure

1. Select the correct Company and Branch for whom the alert is to be configured.

2. Based On: Choose on what you want to base the alert configuration (Object, Object Group, Object Type).

   1. Object: Select individual vehicles for whom you want the alert to generate.
   2. Object Group: Select a group of vehicles for whom you want the alert to generate.
   3. Object Type: Select vehicle or object type for whom you want the alert to generate.

3. Select the Object based on the previous step selection.

4. Set an Alert Name for identification of the alert.

5. Select the Alert Type as Exceeding Road Sign Warning.


6. In the Text field, enter the message that will be displayed when the alert is triggered.

7. Select the Valid Days, Everyday or Custom.
   1. Everyday: This alert will be triggered, everyday in case of a violation in accordance to these parameters set.
   2. Custom: Mark the checkboxes of the days, when you want this alert to be triggered for. (eg., Sun, Mon and Sat)

8. Enter the Valid Time From and To. The alert will be generated inside the time range that you have selected.
9. Select the Timezone.
10. Select the Severity of the alert (Low, Medium, or High).
11. Mark the checkboxes of the medium via which you want the Action or Notification to be sent. (eg., SMS, Email or Notification)

    1. SMS: To receive an alert by SMS, enable the checkbox, enter the phone numbers.
    2. Email: To receive an alert by Email, enable the checkbox, enter the recipients of the email.
    3. Notification: To receive an alert on the system Push Notification, enable checkbox.
       1. From Users,  select the users that will receive the notification.
       2. From Notification Sound. Select the sound from the drop-down that will be played for this notification.
12. Click Save 💾 icon. to save the alert configuration.

Example

An Exceeding Road Sign Warning alert is triggered when a vehicle goes above the speed limit shown on a road sign. Once triggered, notifications are sent based on the configured actions (SMS, Email, or In-App Notification), helping fleet managers monitor traffic rule compliance and promote safer driving.
