Driver Swipe Missing Alert

The Driver Swipe Missing alert is used to notify users when the required driver swipe or driver identification action is not detected within the configured duration. This alert helps fleet operators ensure that drivers properly identify themselves before or during vehicle operation and maintain accurate driver activity and accountability records.

Parameters Considered (Prerequisites)

• Driver Monitoring System (DMS): The selected vehicle must be equipped with a supported DMS or driver identification system that supports driver swipe detection.
• Driver Swipe Data: The system must receive the required driver swipe/identification data to determine whether the driver has performed the required swipe.
• Duration: A duration must be configured to determine how long the system should wait before generating the alert when the required driver swipe is missing.

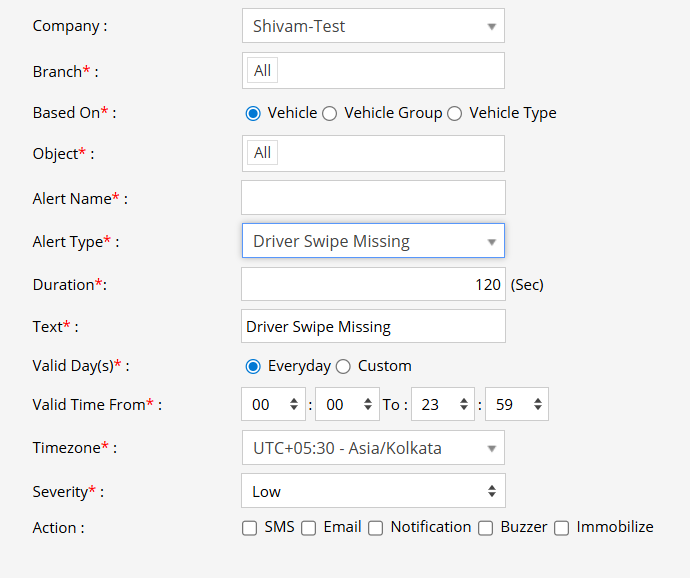

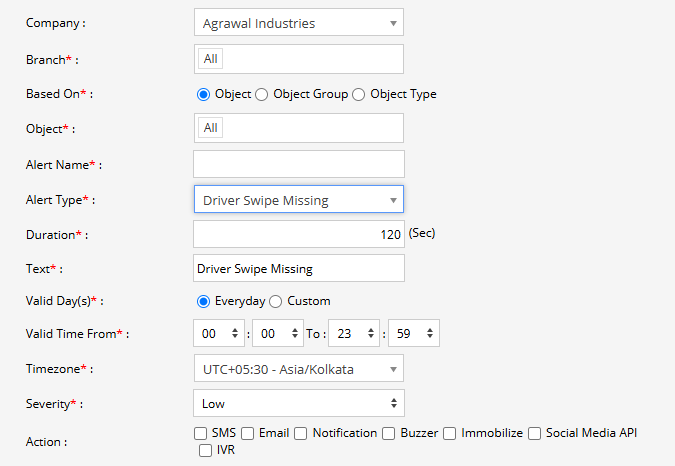

How to Configure

1. Select the correct Company and Branch for whom the alert is to be configured.
2. Based On: Choose what you want to base the alert configuration on (Object, Object Group, Object Type).
   1. Object: Select individual vehicles/objects for whom you want the alert to generate.
   2. Object Group: Select a group of vehicles/objects for whom you want the alert to generate.
   3. Object Type: Select a vehicle or object type for whom you want the alert to generate.
3. Select the Object based on the previous step selection.
4. Set an Alert Name for identification of the alert.
5. Select the Alert Type as Driver Swipe Missing.
6. Enter the Duration in seconds. This defines the time the system waits for the required driver swipe before triggering the alert.
   • For example, if the duration is set to 120 seconds, the alert will be generated when the required driver swipe is not detected within 120 seconds.
7. In the Text field, enter the message that will be displayed when the Driver Swipe Missing alert is triggered.
8. Select the Valid Day(s) as Everyday or Custom.
   1. Everyday: The alert will be triggered every day when the driver swipe is missing for the configured duration.
   2. Custom: Select the specific days on which you want this alert to be triggered.
9. Enter the Valid Time From and To. The alert will be generated only within the selected time range.
10. Select the required Timezone.
11. Select the Severity of the alert (Low, Medium, or High).
12. Under Action, select the medium through which the alert or action should be performed.
    1. SMS: To receive the alert by SMS, enable the checkbox and enter the required phone numbers.
    2. Email: To receive the alert by email, enable the checkbox and enter the email recipients.
    3. Notification: To receive the alert as a system push notification, enable the checkbox and select the users who should receive it.
    4. Buzzer: Enable this option to activate the configured buzzer when the driver swipe is missing.
    5. Immobilize: Enable this option if the vehicle should be immobilized when the alert is triggered.
    6. Social Media API: To receive the alert through WhatsApp or Telegram, enable the checkbox and configure the required gateway and recipient details.
    7. IVR: To receive the alert through an automated voice call, enable the checkbox and enter the required phone numbers.
13. Click the Save 💾 icon to save the alert configuration.

Example

A vehicle is equipped with a DMS/driver identification system that requires the driver to perform a swipe before operating the vehicle. The Driver Swipe Missing alert is configured with a duration of 120 seconds. If the required driver swipe is not detected within 120 seconds, the alert is triggered and the configured users are notified. Depending on the configuration, a Buzzer can also be activated or the vehicle can be Immobilized.
