BLE Battery Sensor 1 Alert

 The BLE Battery Sensor 1 alert is used to notify users when the battery level of the first connected BLE (Bluetooth Low Energy) sensor reaches a low or critical level. This alert helps fleet managers or operators take timely action to recharge or replace the sensor battery, ensuring uninterrupted operation of BLE sensors and associated monitoring systems.

Parameters Considered (Prerequisites)

  • BLE Sensor: A supported BLE sensor must be configured and associated with the selected object.
  • BLE Battery Data: The system must receive battery-level information from the BLE sensor.
  • Battery Status: The BLE sensor must report a low or critical battery condition for the alert to be triggered.

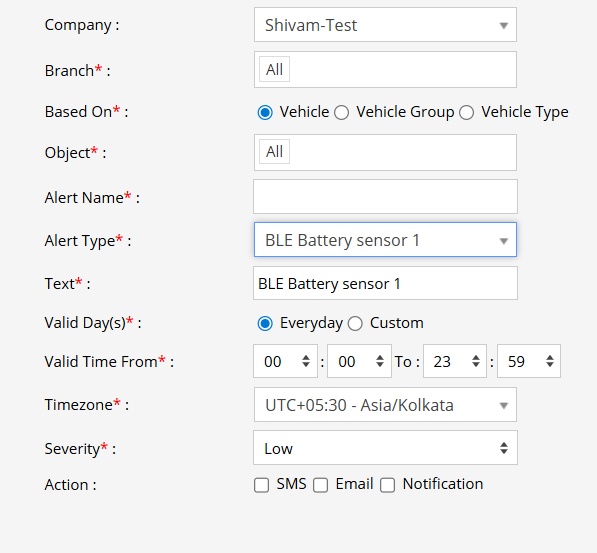

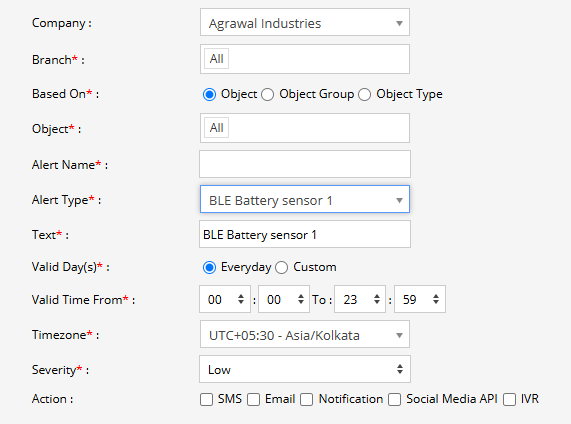

How to Configure

  1. Select the correct Company and Branch for whom the alert is to be configured.
  2. Based On: Choose what you want to base the alert configuration on (Object, Object Group, Object Type).
    1. Object: Select individual vehicles/objects for whom you want the alert to generate.
    2. Object Group: Select a group of vehicles/objects for whom you want the alert to generate.
    3. Object Type: Select a vehicle or object type for whom you want the alert to generate.
  3. Select the Object based on the previous step selection.
  4. Set an Alert Name for identification of the alert.
  5. Select the Alert Type as BLE Battery Sensor 1.
  6. In the Text field, enter the message that will be displayed when the BLE Battery Sensor 1 alert is triggered.
  7. Select the Valid Day(s) as Everyday or Custom.
    1. Everyday: The alert will be triggered every day when the battery of BLE Sensor 1 reaches the configured low or critical condition.
    2. Custom: Select the specific days on which you want this alert to be triggered.
  8. Enter the Valid Time From and To. The alert will be generated only within the selected time range.
  9. Select the required Timezone.
  10. Select the Severity of the alert (Low, Medium, or High).
  11. Under Action, select the medium through which the alert or notification should be sent (SMS, Email, Notification, Social Media API, or IVR).
    1. SMS: To receive the alert by SMS, enable the checkbox and enter the required phone numbers.
    2. Email: To receive the alert by email, enable the checkbox and enter the email recipients.
    3. Notification: To receive the alert as a system push notification, enable the checkbox and select the users who should receive it.
    4. Social Media API: To receive the alert through WhatsApp or Telegram, enable the checkbox and configure the required gateway and recipient details.
    5. IVR: To receive the alert through an automated voice call, enable the checkbox and enter the required phone numbers.
  12. Click the Save 💾 icon to save the alert configuration.

Please Note: To receive alerts through SMS, Email, Social Media API, or IVR, the respective API/gateway must be configured at the Admin, Reseller, or Company level.

Example

A vehicle has BLE Sensor 1 installed to monitor a specific condition. As the sensor battery level decreases, the sensor reports a low battery condition to the system. The BLE Battery Sensor 1 alert is triggered, and the configured users receive a notification, allowing them to recharge or replace the battery before the sensor stops functioning.
