ADAS Forward Collision

 The Forward Collision Warning alert is used to notify users when the connected Advanced Driver Assistance System (ADAS) detects a potential collision risk with an object or vehicle ahead. This alert helps fleet operators monitor forward-collision events, identify unsafe driving situations, and take timely action to improve road safety.

Parameters Considered (Prerequisites)

• Advanced Driver Assistance System (ADAS): The selected vehicle must be equipped with a supported ADAS device or system.
• Forward Collision Detection: The ADAS must support detection of potential forward collision risks.
• Collision Warning Data: The system must receive the corresponding Forward Collision Warning event from the connected ADAS device.

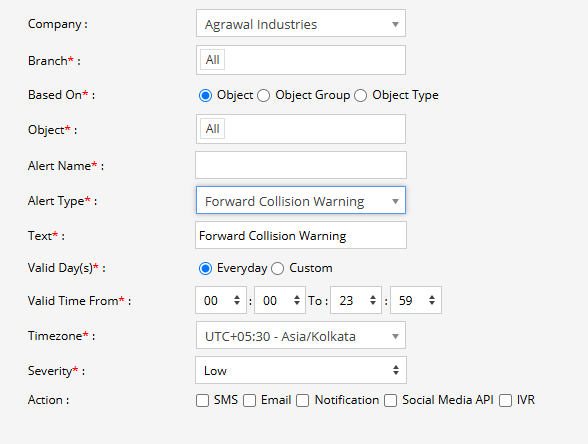

How to Configure

1. Select the correct Company and Branch for whom the alert is to be configured.
2. Based On: Choose what you want to base the alert configuration on (Object, Object Group, Object Type).
   1. Object: Select individual vehicles/objects for whom you want the alert to generate.
   2. Object Group: Select a group of vehicles/objects for whom you want the alert to generate.
   3. Object Type: Select a vehicle or object type for whom you want the alert to generate.
3. Select the Object based on the previous step selection.
4. Set an Alert Name for identification of the alert.
5. Select the Alert Type as Forward Collision Warning.
6. In the Text field, enter the message that will be displayed when the Forward Collision Warning alert is triggered.
7. Select the Valid Day(s) as Everyday or Custom.
   1. Everyday: The alert will be triggered every day when a forward collision warning event is detected.
   2. Custom: Select the specific days on which you want this alert to be triggered.
8. Enter the Valid Time From and To. The alert will be generated only within the selected time range.
9. Select the required Timezone.
10. Select the Severity of the alert (Low, Medium, or High).
11. Under Action, select the medium through which the alert or notification should be sent (SMS, Email, Notification, Social Media API, or IVR).
    1. SMS: To receive the alert by SMS, enable the checkbox and enter the required phone numbers.
    2. Email: To receive the alert by email, enable the checkbox and enter the email recipients.
    3. Notification: To receive the alert as a system push notification, enable the checkbox and select the users who should receive it.
    4. Social Media API: To receive the alert through WhatsApp or Telegram, enable the checkbox and configure the required gateway and recipient details.
    5. IVR: To receive the alert through an automated voice call, enable the checkbox and enter the required phone numbers.
12. Click the Save 💾 icon to save the alert configuration.

Example

A vehicle equipped with ADAS is approaching another vehicle or object ahead, and the system detects a potential forward collision risk. The ADAS generates a Forward Collision Warning event, which triggers the configured alert. The selected users receive a notification, allowing the fleet operator to review the event and take appropriate action.
