The Air Condition Sensor Configuration is used to map and enable the air conditioning (AC) status sensor connected to the tracking device. Once configured, the system can detect and monitor the AC ON/OFF status reported by the device.
Before You Get Started
- Log in to your account.
- Go to Settings > General > Object.
- Double-click on the vehicle/object record for which you want to configure the Ignition sensor .
To Get Started

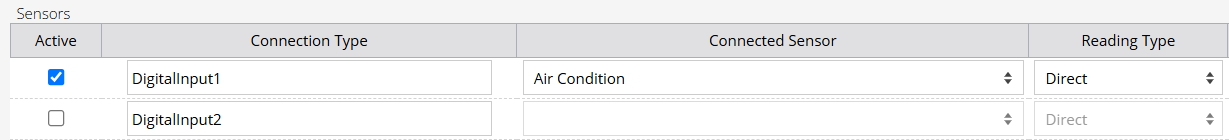

- Navigate to the Sensors tab.
- Activate the digital port connection type by clicking on the checkbox given in the Active column.
- User can select the digital input port to connect the A/C sensor.
- In the Connected sensor select Air Condition.
-
Reading Type: This setting determines how the received data is displayed in the system.
- Direct: The system displays the data exactly as it is received from the sensor.
- Inverse: The system displays the opposite of the received data (e.g., ON becomes OFF and OFF becomes ON).
Please Note: Select the appropriate option based on how you want the sensor data to be interpreted and shown in the system.
- Save the configuration by clicking on the Save 💾 icon.
Please Note: Users can configure alerts for Air condition actions to stay informed of any activity.
To configure the Air Condition alert click, here.
