The Pressure Sensor configuration allows users to modify the standard tire pressure and temperature thresholds for each axle of a vehicle model. These values are used to monitor tire conditions and generate alerts whenever the tire pressure or temperature exceeds the configured limits.
Users can configure the pressure and temperature thresholds, select the preferred measurement units, and define pressure values for each axle.
To Get Started
- Login to your account
- Go to Settings > Tire > Pressure Sensor.
- Double-click on the object record for which you want to change the threshold value.

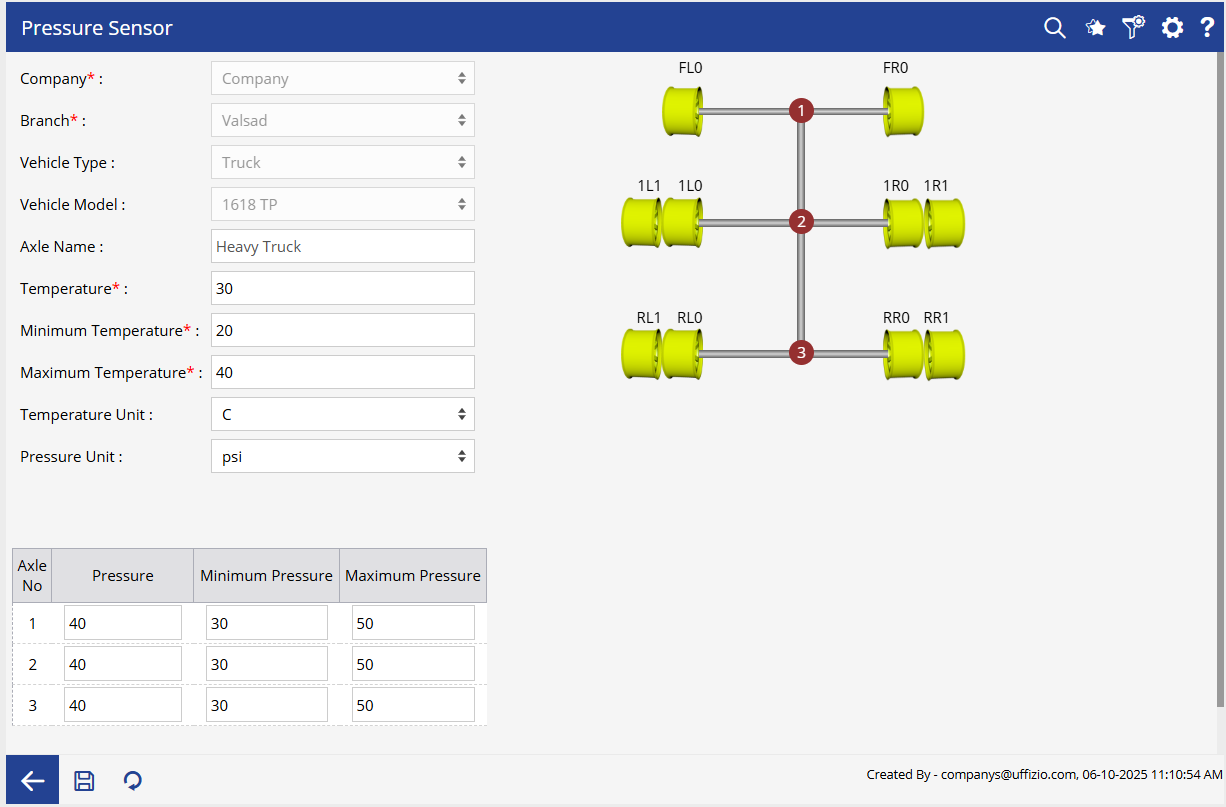

- The Following Screen will Open.
To Configure The Values

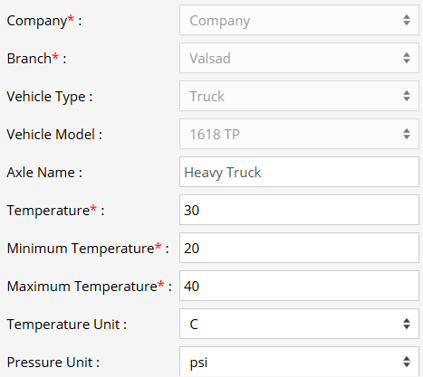

- Company, Branch, Vehicle Type, Vehicle Model & Axel Name are pre defined.
- Temperature: Specify the standard tire temperature.
- Minimum Temperature: Define the minimum allowable tire temperature before an alert is generated.
- Maximum Temperature: Define the maximum allowable tire temperature before an alert is generated.
- Temperature Unit: Select the unit used for measuring tire temperature.
- Pressure Unit: Select the unit used for measuring tire pressure.

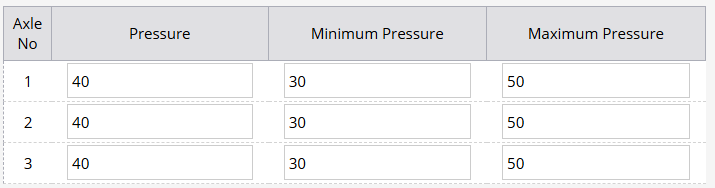

- Pressure: Specify the standard tire pressure for each axle.
- Minimum Pressure: Define the minimum pressure threshold for each axle.
- Maximum Pressure: Define the maximum pressure threshold for each axle.
- Click on the Save 💾 icon to save the changes.
