Tooltip

When the user clicks on an object from the object list, a tooltip will appear on the right side of the live tracking screen. This tooltip will display the real-time data of the current day on the various widgets, each showing information related to the different object's feature.

The user can customize these widgets to fit their specific requirements.

To view the tooltip, go to Listing Panel > Object tab > Click on an object.

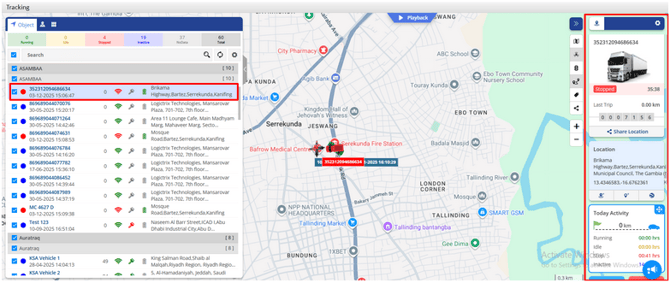

• The tooltip will be displayed on the right side of the screen and will correspond to the object that has been selected from the object list, as illustrated in the image below:

• The tooltip allows users to customize their view by selecting preferred widgets, providing information about various features related to the object according to individual needs.
• Users have the flexibility to rearrange the widgets in a sequence that best suits their preferences.

To enable or select the preferred widgets, go to Tooltip > Click on    as highlighted in the image below:

The tooltip widgets will be displayed according to the selections made in the image provided below:

Multiple widgets from different categories can be selected based on the user's requirements and preferences.

Below given are the categories and the widgets under them:

• Vehicle info:
  • Status
    This shows the status of the object, whether it is running, idle, stopped, or inactive. It also shows the distance covered in the current trip.
  • Odometer
    The odometer reading of that object will be displayed.
• Location:
  This widget displays the location of the object, along with the geofence group name, if any. Using this widget, that location can be added as a geofence and as an address. Users can also download that location in KML format.
• Today Activity:
  Information about the current or recent activities of the object can be viewed. It could display details such as the distance, running, idle, stop, inactive and last stop. The user can also view the logs of the data received from the device.
• Speed:
  The speed widget displays the average speed and maximum speed of the object.
• Alert:
  The total number of alerts generated on the object will be displayed here.
• GPS Device Parameter:
  The parameters we receive from GPS device is displaye under this widget.
• Network Paramter:
  The parameters of Network will be displayed here.
• Security:
  You can enable or display the immobilisation from here and also have the record of the history over here.

There are a number of widgets available for the users to choose from, as per their requirements and preferences.
