The Temperature Daily Summary Report provides a day-wise summary of temperature and humidity readings collected from temperature sensors installed in vehicles or assets.
This report helps users analyze daily temperature performance by displaying travel distance, start and end locations, average temperature, minimum temperature, maximum temperature, and humidity statistics for each day. It is particularly useful for monitoring refrigerated vehicles, cold-chain logistics, pharmaceutical transportation, food distribution, and other temperature-sensitive operations.
Users can drill down to view detailed temperature records for any selected day.
This report is available in Trakzee Standard, Trakzee Premium and Smart Waste management
Before You Get Started
Before generating this report, ensure that:
- Temperature sensors are properly connected and configured.
- The tracking device is actively transmitting sensor data.
- Sensor calibration has been completed if required.
- Vehicles or assets are assigned correctly within the platform.
- Temperature data exists for the selected date range.
- Users have permission to access temperature reports.
- Sensor ports are properly mapped within the device configuration.
To Open Temperature Daily Summary
- Log in to your account
- Go to Reports→Temperature→Temperature Daily Summary

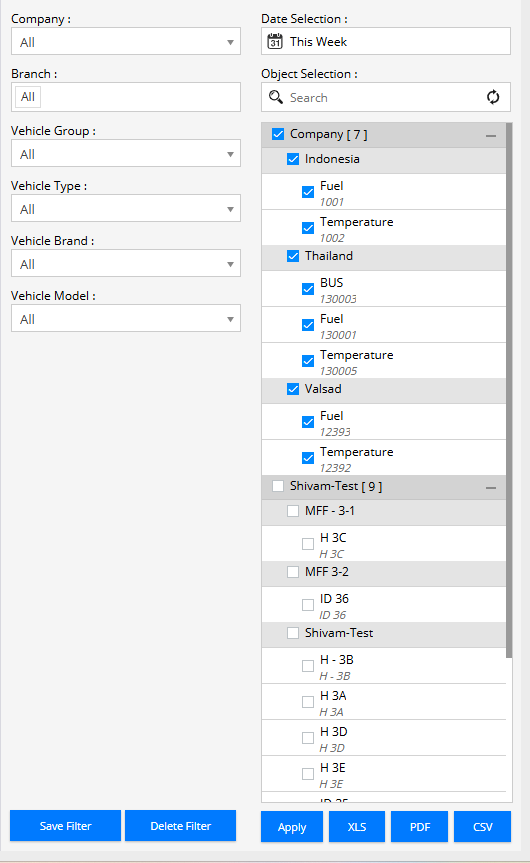

Filter Explanation
- Company : Select a specific company or choose All to view data from all companies.
- Branch : Filter report data by branch.
- Date Selection : Select the required reporting period
- Vehicle Group : Filter vehicles by group.
- Vehicle Type : Filter vehicles based on their type.
- Vehicle Brand :Filter records by vehicle manufacturer.
- Vehicle Model : Filter records by vehicle model.
- Object Selection : Select one or more vehicles/assets to generate the report.
- Users can:
- Search objects.
- Expand company hierarchy.
- Select multiple objects.
- Refresh the object list.
- Apply : Generates the report using selected criteria.
- Save Filter : Stores filter settings for future use.
- Delete Filter : Removes saved filter configurations.
- Export Options :
- XLS – Export report in Excel format.
- PDF – Export report in PDF format.
- CSV – Export report in CSV format.
Report Explanation

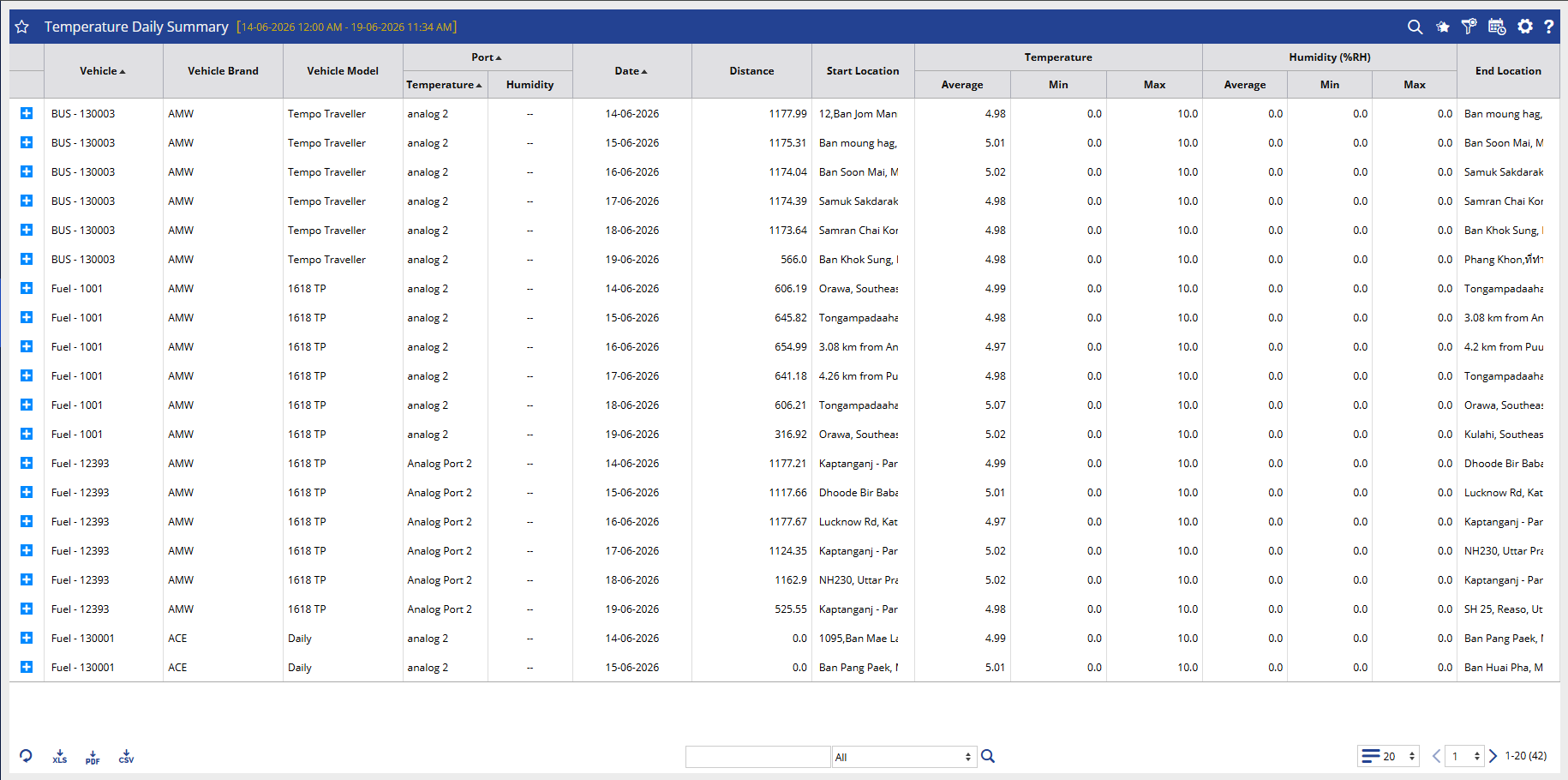

Summary View
- Vehicle : Name of the vehicle or asset associated with the temperature sensor.
- Vehicle Brand : Manufacturer of the vehicle.
- Vehicle Model : Model of the vehicle.
- Port : Displays the configured sensor ports used for:
- Temperature monitoring
- Humidity monitoring
- Examples:
- Analog 1
- Analog 2
- Analog Port 2
- Date : The day for which the temperature statistics are calculated.
- Distance : Total distance traveled by the vehicle during the day.
- Start Location : Location where the vehicle started its journey for the day.
- Temperature Statistics
- Average : Average temperature recorded during the day.
- Min : Lowest temperature recorded during the day.
- Max : Highest temperature recorded during the day.
- Humidity (%RH)
- Average : Average humidity recorded during the day.
- Min : Minimum humidity value recorded during the day.
- Max : Maximum humidity value recorded during the day.
- End Location : Location where the vehicle completed its journey for the day.

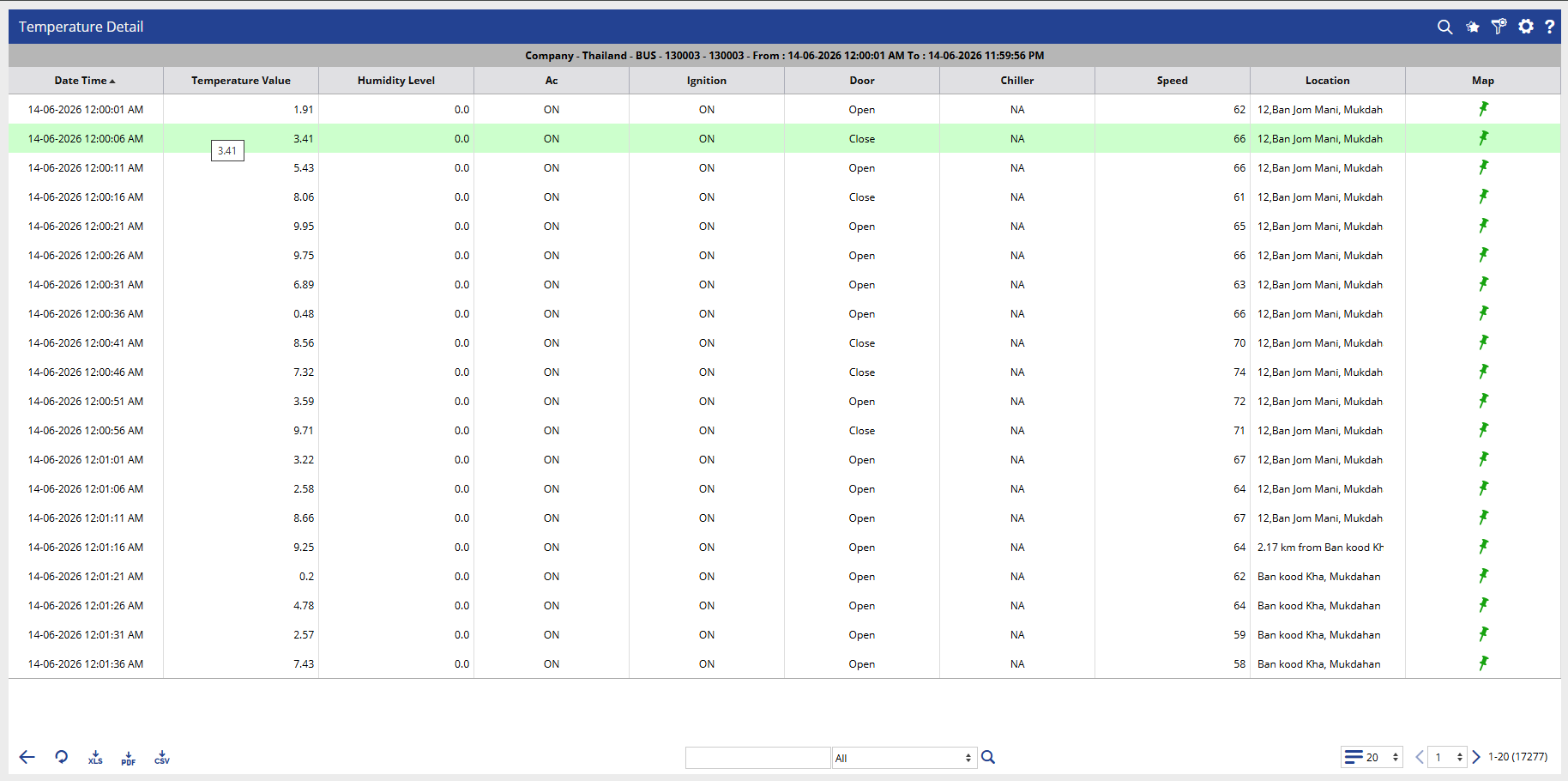

Detail View
- Date Time : Displays the exact date and time when the temperature reading was received.
- Temperature Value : Actual temperature reported by the sensor at that moment.
- Humidity Level : Humidity value recorded by the sensor.
- AC : Displays the vehicle air-conditioning status.
- Possible values:
- ON
- OFF
- Ignition : Displays the vehicle ignition status.
- Possible values:
- ON
- OFF
- Door : Displays the door status at the time of temperature recording.
- Possible values:
- Open
- Close
- Chiller : Displays the refrigeration/chiller status if available.
- Possible values:
- ON
- OFF
- NA
- Speed : Vehicle speed at the time the temperature reading was recorded.
- Location : GPS location where the temperature reading was generated.

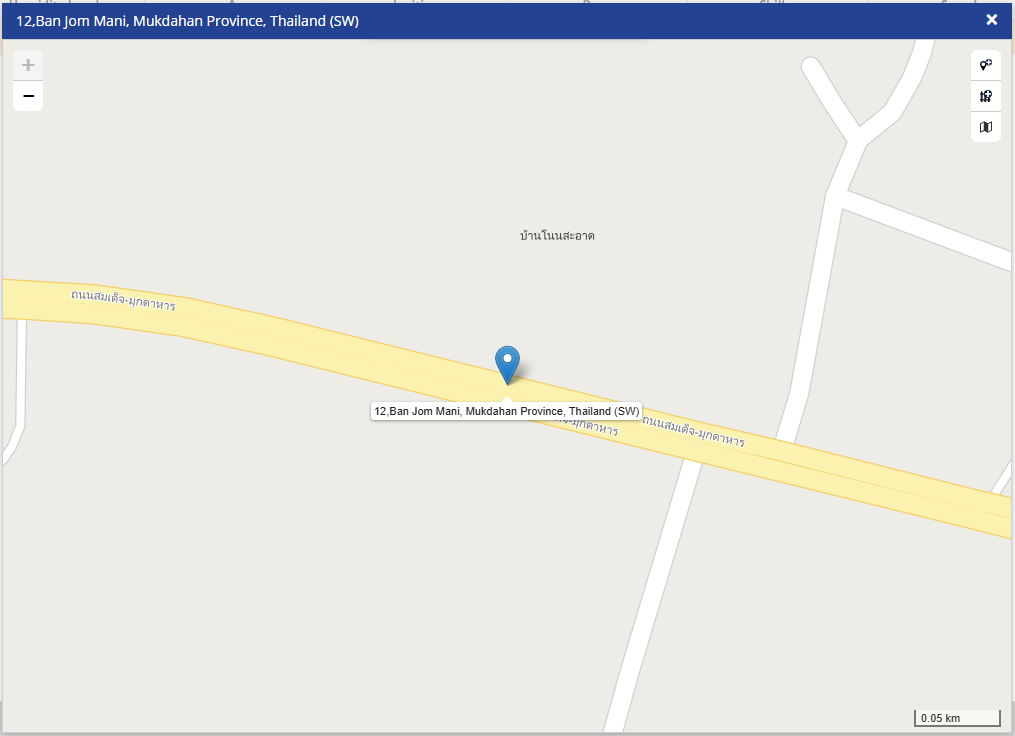

- Map : Allows users to view the exact temperature reading location on the map.
- Displays the location where the temperature reading was recorded. The location can be shown as either a GPS-based address or a configured geofence name, depending on system settings. Users can also choose to view the corresponding location directly on the map.
