Speed vs Distance

The Speed vs Distance report provides an analysis of vehicle movement performance by showing how distance is distributed across different speed ranges during the selected time period.

Please Note: This report is only available in Trakzee Premium.

To Open Speed vs Distance Report.

  • Log in to your account.
  • Go to Reports > Activity > Speed VS Distance.

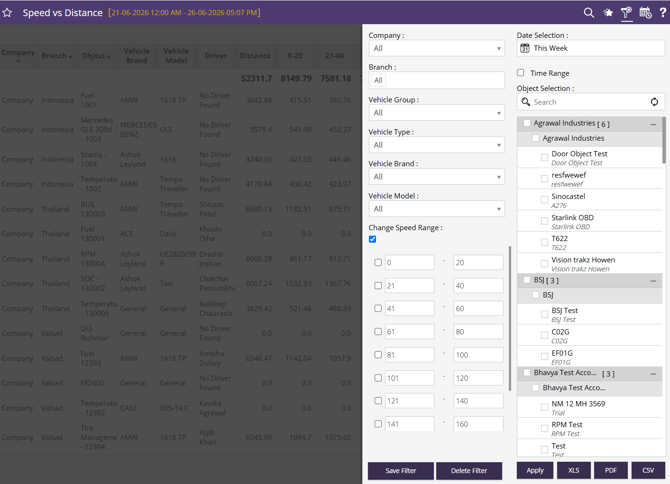

When the user clicks on the Speed vs Distance Report, the filter panel opens. The user must then select the vehicle & date range. to generate the report. Additional filter options are also available and are explained below

Filter Explanation:

  • The Speed vs Distance Report provides a range of filter options to help users generate a customized report based on their requirements. Applying the appropriate filters helps narrow down the results and display only the relevant travel information. Once the desired filters are selected, click Apply to generate the report. The available filter options are explained below.
    • Company: Select the company for which the report needs to be generated. Branch & vehicles associated with the selected company will be displayed in the list.
    • Branch: Select a specific branch for which the report needs to be generated. vehicles associated with the selected branch & company will be displayed in the list.
    • Vehicle Group: Filter vehicles based on the configured vehicle groups. Vehicle will be listed from the selected Group.
    • Vehicle Type: Select the vehicle type (e.g., Car, Truck, Bus) vehicle will be listed based on selected type.
    • Vehicle Brand: Select the vehicle brand (e.g., Mercedes, Scania, TATA) vehicle will be listed based on selected brand.
    • Vehicle Model: Select a vehicle model (e.g., E class, 5 series, Safari) vehicle will be listed based on selected model.
    • Change Speed Range: User can define custom speed range to be displayed in the report.
    • Date Selection: Select the date range for which the report is to be generated.
      • Today: Select to generate the report for the current day.
      • Yesterday: Select to generate the report for the previous day.
      • This Week: Select to generate the report for the current week. The report includes data up to the current day of the week.
      • Last Week: Select to generate the report for the previous week.
      • Last 7 Days: Select to generate the report for the previous 7 days..
      • This Month: Select to generate the report for the current month. The report includes data up to the current date.
      • Last Month: Select to generate the report for the previous month.
      • Custom Range: Select to generate the report for a specific date range by manually choosing the start and end dates.
    • Object Selection: Users can select the required object(s) from the list. Multiple vehicles/objects can be selected simultaneously for report generation.
      • Search: Users can search for vehicles/objects from the available list using the search field.
    • Apply: Click to generate report based on configured parameters.
    • XLS/PDF/CSV: Click to download the report based on the configured parameters and selected format.

Report Layers

The Speed vs Distance Report is a single layer report.

  • Speed vs Distance: The Speed vs Distance report provides an analysis of vehicle movement performance by showing how distance is distributed across different speed ranges during the selected time period.
    • Company: Company associated with the vehicle.
    • Branch: Branch associated with the vehicle.
    • Object: Object or asset Name.
    • Vehicle Brand: Manufacturer of the vehicle.
    • Vehicle Model: Model/type of vehicle.
    • Driver: Assigned driver name.
    • Distance: Displays the total distance traveled by the vehicle when report is generated.
    • 0-20: Distance traveled while the vehicle speed was between 0 and 20 km/h.
    • 21-40: Distance traveled while the vehicle speed was between 21 and 40 km/h.
    • 41-60: Distance traveled while the vehicle speed was between 41 and 60 km/h.
    • 61-80: Distance traveled while the vehicle speed was between 61 and 80 km/h.
    • 81-100: Distance traveled while the vehicle speed was between 81 and 100 km/h.
    • 101-120: Distance traveled while the vehicle speed was between 101 and 120 km/h.
    • 121-140: Distance traveled while the vehicle speed was between 121 and 140 km/h.
    • 141-160: Distance traveled while the vehicle speed was between 141 and 160 km/h.
    • 161-180: Distance traveled while the vehicle speed was between 161 and 180 km/h.
    • 181-200: Distance traveled while the vehicle speed was between 181 and 200 km/h.

 Additional Features:

The report includes additional features and actions for easier analysis and navigation. To learn more about these features, click here.
