The Live Tracking screen empowers users to effectively oversee the activities and movements of Objects in real time. It provides an interactive and dynamic view, constantly updating with the latest data on the movement, location, status update, and other associated features of the objects.
Key Highlights:
- Real-Time Monitoring: Stay updated on the current status and movements of pets as they happen.
- Dynamic Interface: An intuitive and interactive layout makes it easy to visualize and track pets on the map.
- Customizable Features: Change the tooltip to display the information according to your needs.
- Enhanced Visibility and Control: Access to live data empowers users to make informed decisions, ensuring smoother and more efficient pet management.
Users can review daily activities, alerts, Object playback history, and other events that occurred during the day.

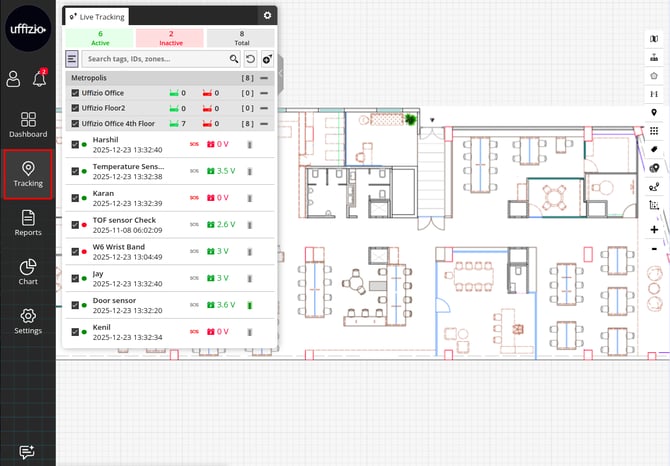

To open the live tracking screen, click on Live Tracking in the Web Portal, as highlighted in the below-given image.

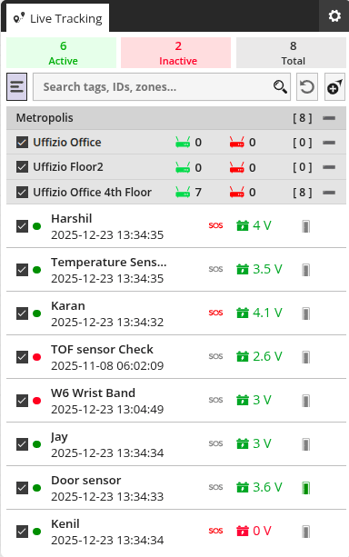

Listing Panel
On the left side of the screen, you will find the listing panel, which provides a comprehensive overview of various listings as described below:
Object Tab
This tab shows Objects categorized by their current status, such as Active & Inactive along with key details like name, last data update time, and more—all in one place.
Learn more about the Object tab.
Map Tools
On the right side of the screen, we have Map tools, as shown in the image below:
Map tools are as listed below:
.png?width=30&height=30&name=Vector%20(2).png){kind=small} |
Select Map We provide OSM Map, but if the users have purchased any Map Keys then they can select other maps from here accordingly. Check how to configure Map. |
 |
Show Transmitter This icon will show/hide the transmitter on the Floor Map. |
 |
Show Zone This icon will show/hide the zone on the Floor Map. |
 |
Show Barrier This icon will show/hide the barrier on the Floor Map. |
 |
Show POI This icon will show/hide the POI on the Floor Map. |
 |
Show Cluster The cluster option is used to view the number of object in a particular area on the map. |
.png?width=30&height=30&name=Vector%20(3).png){kind=small} |
Show Label The user can click on Show Label to view the objects with their labels. |
.png?width=34&height=35&name=Frame%2010%20(1).png){kind=small} |
Single Object Mode The user can view only the selected object on the map by clicking on Single Object Mode. |
 |
Object with Path By clicking on Object with Path, the user can view the route taken by the object for either last 15,30 or 60 minutes. |
 |
Heat Map Shows a heat Map for maximum number of a objects at a particular location on the Floor plan. |
 |
Zoom In User can zoom in on the map using Zoom In. |
 |
Zoom Out User can zoom out on the map using Zoom Out. |
